User manual

3.4.2 RTD Connection
17
Note 1 : In 3-wire system, use always cables of the same diameter (min ) Always use
wires of the same gauge and type whether a 2-wire or 3-wire system.
1mm²
Install a jumper between terminals 2 and 3 when using a 2-wire RTD.
If the distance is longer than 10 meters, use 3-wire system
Note 2 :
Note 3 :

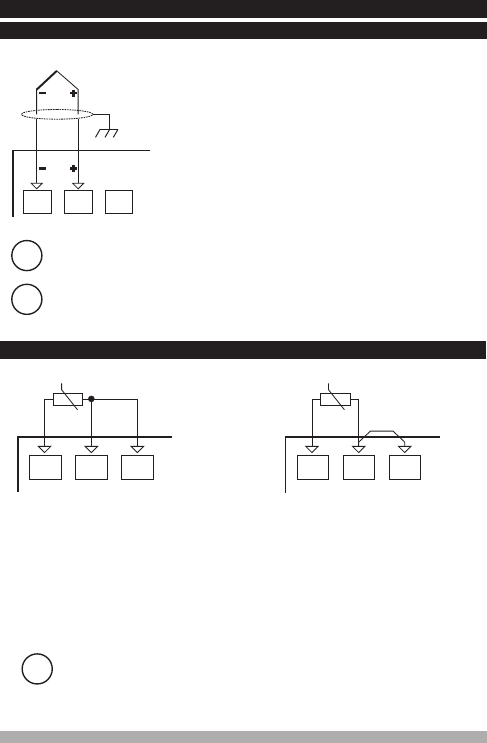

3-wire Pt-100 connection
(with line compensation)
(Max. Line impedance is 10 )W
2-wire Pt-100 connection
(without line compensation)
3.4.1 TC (Thermocouple) Connection
123
TC
Connect the wires with the polarity as shown in the
figure left.
Always use compensation wire corresponding to the thermocouple used. If
present, the shield must be connected to a proper ground.
3.4 Process Input Connection
i
Input resistance is greater than 10M W.
i
Input resistance is greater than 10M W.
i
112233
Pt-100
Note 1
Note 2
Pt-100
