1-Loosen the screws.
2-Lift the locking tabs located on both the
right and left hand sides and pull the fixing
clamp from the device while holding the unit
in place.
3-Pull the unit through the front side of the
panel
Before starting to remove the unit from panel, power off the unit and the related
system.
Montage of the unit to a system must be done with it’s own fixing clamps. Do not
do the montage of the device with inappropriate fixing clamps. Be sure that
device will not fall while doing the montage.
The unit is designed for panel mounting.

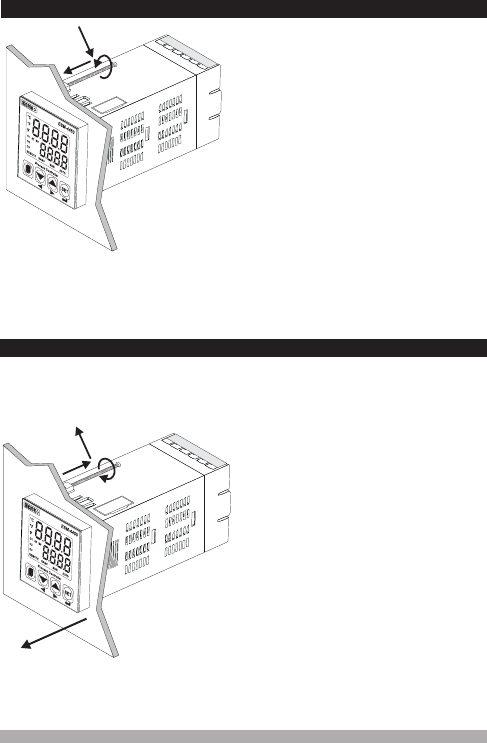

1-Insert the unit in the panel cut-out from the
front side.
2-Insert the mounting clamp from the rear
side of the unit and screw up the fixing
screws until the unit completely immobile
within the panel
2.6 Installation Fixing Clamp
2.7 Removing from the Panel
