User manual

Heater failure alarm. It is active if CT input module is
plugged in Module-1 or Module-2 socket.
V

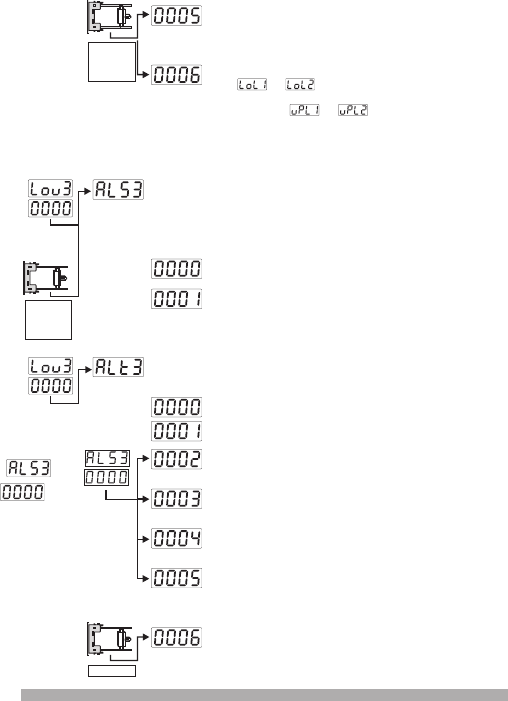

It determines alarm type. It is active if logic output function of Output-3
is alarm output.
116
Alarm output runs according to the process input.
Process high alarm
Process low alarm
Alarm output runs according to the analogue input module
(2nd sensor input) in Module-1 or Module-2 socket.
Deviation high alarm. It is active when alarm output runs
according to the process input.
Deviation low alarm. It is active when alarm output runs
according to the process input.
Deviation band alarm. It is active when alarm output runs
according to the process input.
Deviation range alarm. It is active when alarm output runs
according to the process input.
EMI-410
EMI-430
EMI-440
EMI-450
MODULE-1
or
MODULE-2
EMI-420
MODULE-1
or
MODULE-2
EMI-410
EMI-430
EMI-440
EMI-450
If process value is less than minimum value of operating
scale or for analogue input module in Module-
1 or Module-2 socket or greater than maximum value of
operating scale or for analogue input module
in Module-1 or Module-2 socket, process output becomes
active.(This parameter is visible if one of the analogue input
modules is plugged in Module-1 or Module-2 socket)
MODULE-1
or
MODULE-2
Sensor break alarm output for analogue input module in
Module-1or Module-2 socket. ( It is visible if one of analogue
input modules is plugged in Module-1 or Module-2 socket )
Measurement input selection for Output-3 alarm output. This
parameter is visible if Logic output function of Output-3 is Alarm output
and one of the analogue input modules is plugged in Module-1 or
Module-2 socket
