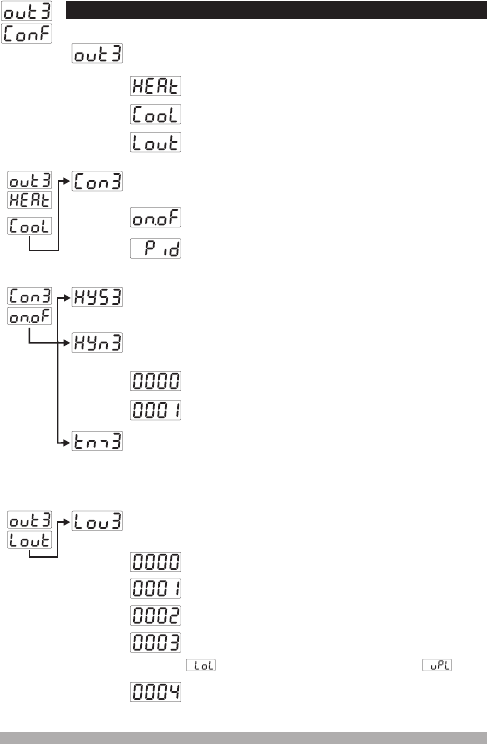

8.2.5 OUTPUT-3 Configuration Parameters
Defines output function for Output-3
Defines control algorithm of Output-3. It is active if output function of
Output-3 is heating or cooling.
Hysteresis value for OUT-3. It can be adjusted from 0% to 50% of
defined scale. ( It is active if ON/OFF control is selected)
It determines operation form of hysteresis.
(It is active if ON/OFF control is selected)
In ON/OFF operation, this time must be passed for the output to be
energised again. It can be adjusted from 0.0 to 100.0 seconds.
( It is active if ON/OFF control is selected)
It determines logic output function of Output-3. It is active if output
function of Output-3 is Lout (Logic Output)
Heating
ON/OFF control algorithm
Cooling
PID control algorithm
Logic output
Alarm output
SV + HYS/2 and SV - HYS/2
Sensor break alarm output
Manual /Automatic data output
SV and SV+HYS or SV and SV-HYS
115
OR
Output indicates that Ramp/Soak function has finished
Output is active when the process value is out of the band
which is defined with minimum value of operating scale
and maximum value of operating scale
