User manual

No unit. It is active if input type of Module-2 is selected
Voltage / Current.Z
Unit is U. It is active if input type of Module-2 is selected
ZVoltage / Current.
112

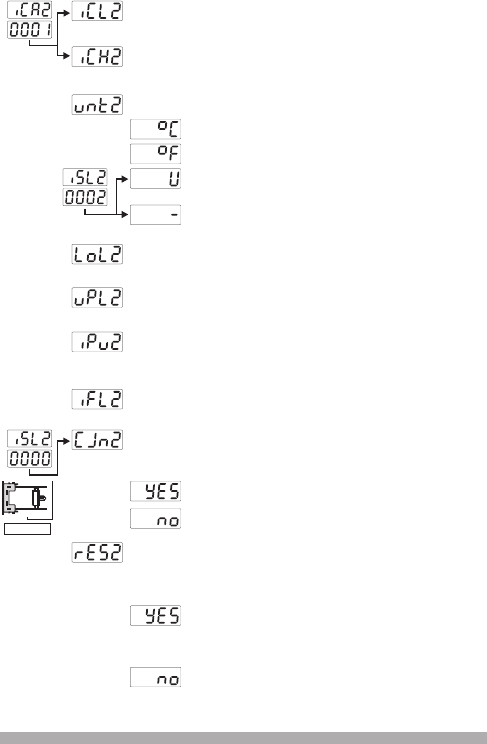

Display offset for value in analogue input module. It can be adjusted
from -10% to +10% of scale. This value is added to the process value.
Unit selection
Unit is °C.
Unit is °F.
EMI-430
Defines minimum value for selectable dual point calibration. It is active
if Voltage / CurrentZ input is selected. It can be adjusted from -1999
to 9999.
Defines maximum value for selectable dual point calibration. It is active
if Voltage / Current input is selected. It can be adjusted fromZ -1999
to 9999.
It is filter time for input signal. It can be adjusted from 0.0 to 900.0
seconds.
It determines if cold junction compensation is active or not for TC input
module in Module-2 socket. It is active if process input of Module-2 is
TC input.
Minimum value of operating scale (Low Limit). It can be changed
according to analogue input type and scale.
Maximum value of operating scale ( High Limit ). It can be changed
according to analogue input type and scale.
Cold junction compensation is active
Cold junction compensation is not active
It determines if the measured value from analogue input module in
Module-2 socket is used as Remote Set or not. This parameter is
visible if point position and unit parameters are same for process input
and analogue input module.
Measured value from analogue input module in Module-2
socket is used as process set value. User defined process
set value is not considered.
Measured value from analogue input module in Module-2
socket is not used as process set value. User defined
process set value is considered.
