8.2.4 MODULE-2 Configuration Parameters

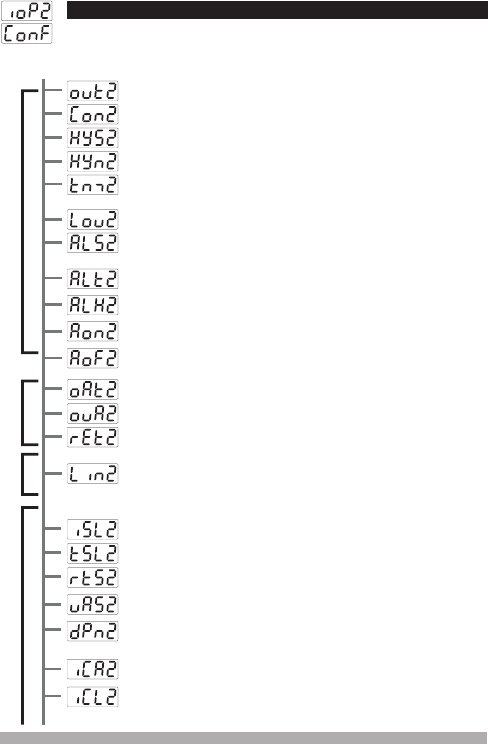

Module-2 configuration parameters are arranged automatically by the device
according to the module type in Module-2 socket. These parameters are not
accessible if there is no module in Module-2 socket.
Defines output function
Defines control algorithm of output module
Hysteresis value of output module
Defines operation form of hysteresis
In ON/OFF operation, this time must be passed for the output to be
energised again.
Defines logic output function
Defines alarm type
Selection of measurement input for alarm output. ( There must be one
of analogue input modules in Module-1 socket.)
Alarm off delay time
Configuration of analogue output module
Configuration of logic input
Function selection of analogue output
Configuration of analogue input module
Selection of sensor type and scale for TC input module
Selection of sensor type and scale for PT-100 input module
It determines input type for Voltage/Current input moduleZ
It determines point position for display.
It defines minimum value for selectable dual point calibration.
It determines calibration type.
EMO-400, EMO-410, EMO-420
EMO-430
EMI-400
EMI-410, EMI-430, EMI-440 , EMI-450
Alarm hysteresis value
Alarm on delay time
It determines “ function for analogue output modulere-transmission”
