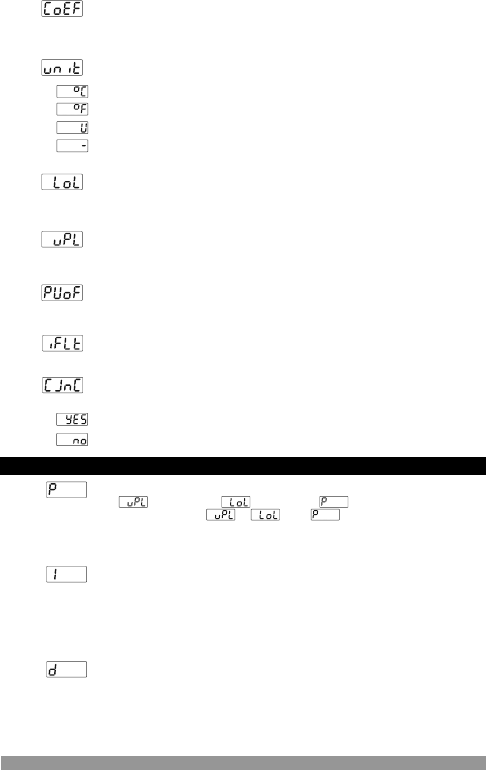

Unit selection
Unit is °C
Unit is °F
Minimum value of operating scale. It can be changed
according to input type and scale of the process.
Display offset for process value.It can be adjusted -10 % to
+10 % of scale. The defined value is added to process value.
Unit is Voltage.Active if oltage/Current input is selected.ZV
No unit.Active if oltage / Current input is selected.V
Coefficient value (1.000, 9.999)
Process value is multiplied with this value.
ZV
Active if oltage / Current input is selected.
Defines filter time for input signal. It can be adjusted from 0.0
to 900.0.
It is active if process input is selected TC input. It decides if
cold junction compensation is active or not.
Cold junction compensation is active.
Cold junction compensation is not active.
Maximum value of operating scale. It can be changed according
to input type and scale of the process.
Pıd ConF: PID Configuration Parameters
PROPORTIONAL BAND ( 0.0% , 999.9% )
If = 1000 °C, = 0 °C and = 50.0 then,
Proportional Band = ( - ) * / 100.0
Proportional Band = (1000-0)*50.0/100.0 = 500 °C
INTEGRAL TIME (0, 3600)Second
It can be changed by the user. When Tune operation stops, it can
be changed by the device. If it is 0, integral control part does not
run. When tune operation stops if this parameter is 0, this
parameter can not be changed because of integral control part
does not run.
DERIVATIVE TIME (0.0, 999.9)Second
It can be changed by the user. When Tune operation stops, it can
be changed by the device. If it is 0, derivative control part does not
run. When tune operation stops if this parameter is 0, this
parameter can not be changed because of derivative control part
does not run.
