Instructions

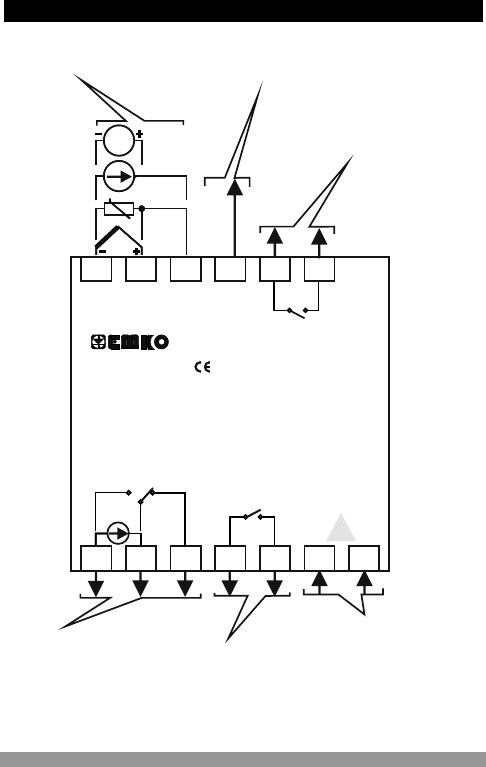

Connexions électriques
1
9
2
10
3
11
4
12
5
13
6
14
TC
Pt -100
0 à 20mA Z
0 à 50mV Z
0 à 10V Z
CATII
P/N : ESM-4435
Y
c
5A@250V V
Sortie Process
5A@250V V
CNO
NO
C
Entrée de
Process universelle
(Courant/ Tension Z, TC, RTD)
Tension d'alimentation
capteur ou transmetteur
Sortie 3
(Process)
Sortie -1
(Alarme)
Sortie -2
(Alarme)
Tension d'alimentation
100-240VV(-15% ; +10%) 50/60Hz – 6VA
24VV(-15% ; +10%) 50/60Hz - 6VA
24VZ(-15% ; +10%) – 6W
48VZ(-15% ; +10%) – 6W
24V Z ±10%
Max. 50mA
8
NC
5A@250V V
NO
C
1
9
2
10
3
11
4
12
5
13
6
14
TC
a
C
8
3
