Instructions

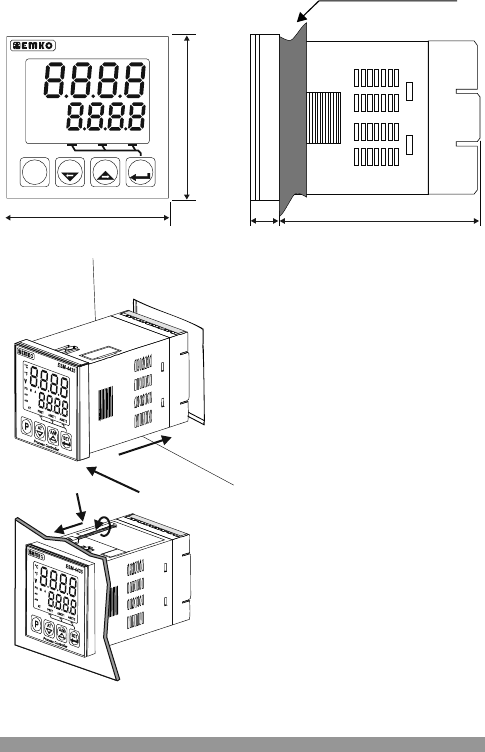

DIMENSIONS
PANEL MOUNTING
Maximum 5mm / 0.2 inch
48 mm/ 1.89 inch
48mm/ 1.89 inch
76mm / 2.99 inch
11.5 ± 1 mm /0.45 inch
°C
°F
V
PO
AO1
AO2
A
AT PSET ASET1 ASET2
M
SET
P
ESM-4435
Process Controller
AT A/M
1
2
3
1-
2-
3-
Before mounting the device in your panel,
make sure that the panel cut-out is suitable.
Check front panel gasket position
Insert the device through the cut-out. If the
mounting clamp are on the unit, put out them
before inserting the unit to the panel.
4-
5-
Insert the unit in the panel cut-out from the
front side.
Insert the mounting clamps to the holes
that located top and bottom sides of device
and screw up the fixing screws until the unit
completely immobile within the panel.
4
2
5
4
