Instructions

18
°C
°F
V
PO
AO1
AO2
A
AT PSET ASET1 ASET2
M
SET
P
AT A/M
°C
°F
V
PO
AO1
AO2
A
AT PSET ASET1 ASET2
M
SET
P
AT A/M
°C
°F
V
PO
AO1
AO2
A
AT PSET ASET1 ASET2
M
SET
P
AT A/M

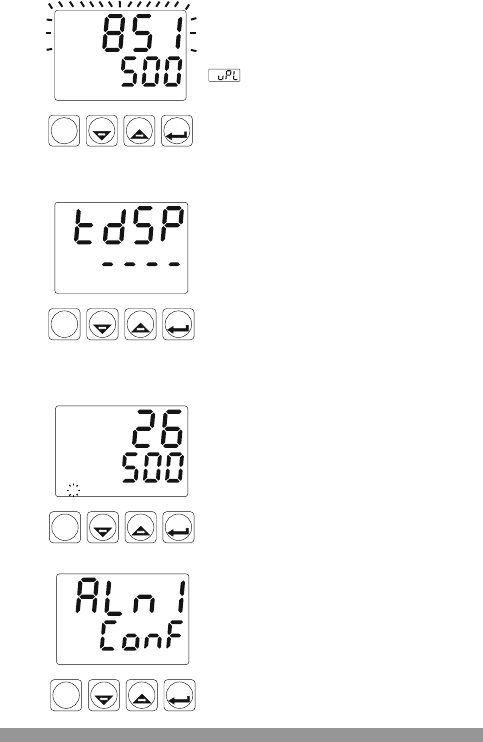

3- If value on top display blinks : If
analogue input value is bigger than
maximum value of operating scale
top display starts to blink.
4- If technician password is different
from “0” and technician accesses to the
parameters by Set button without
entering the technician password and
wants to change a parameter, device
does not allow to do any changes in
parameters. If increment or decrement
button is pressed, a warning message
will appear on the bottom display as
shown on the left.
5- If tuning operation can not be
completed in 8 hours, AT led starts to
blink. Blinking can be canceled by
pressing Enter button.
PSET
°C
°F
V
PO
AO1
AO2
A
AT ASET1 ASET2
M
SET
P
AT A/M
6- If user does not do anything for 120
seconds while device is on technician
menus, device turns to operation
screen.
