Process Set - Alarm Set
HYS
ON
OFF
Process
Set
Process Set + Alarm Set
Process Value
Deviation Band Alarm
HYS
Process Set - Alarm Set
HYS
ON
OFF
Process
Set
Process Set + Alarm Set
Process Value
Deviation Range Alarm

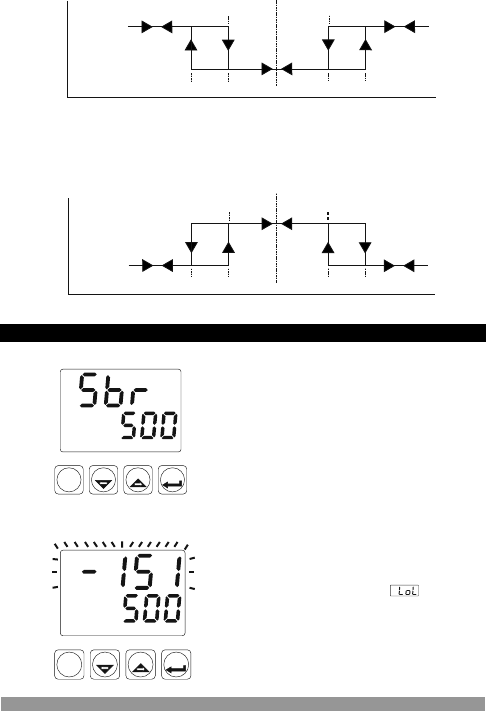

1 - Sensor failure in analogue inputs.
Sensor connection is wrong or there is
no sensor connection.
°C
°F
V
PO
AO1
AO2
A
AT PSET ASET1 ASET2
M
SET
P
AT A/M
°C
°F
V
PO
AO1
AO2
A
AT PSET ASET1 ASET2
M
SET
P
AT A/M
2- If value on top display blinks : If
analogue input value is less than
minimum value of operating scale
Value on the top display starts to blink.
Failure Messages in ESM- 4435 Process Controllers
