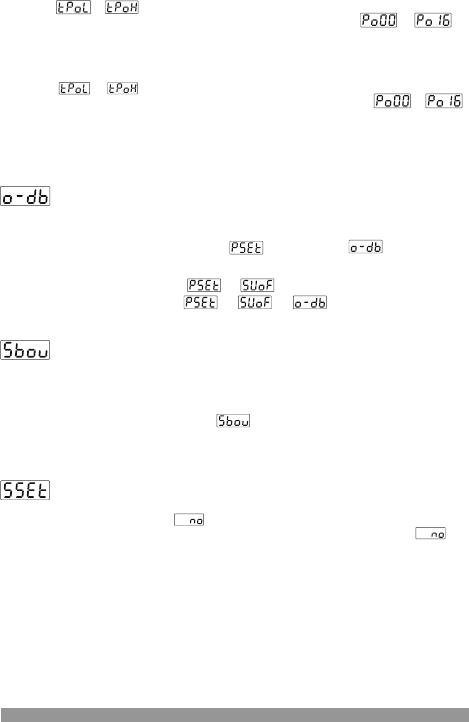

PROPORTIONAL BAND SHIFTING
((-SCALE HIGH POINT / 2 ), (SCALE HIGH POINT / 2 ) )Unit
SENSOR BREAK OUTPUT VALUE
(FOR HEATING PID 0.0, 100.0)%
(FOR COOLING PID -100.0, 0.0)%
When sensor breaks, controlling of the process can continue
by entering % output value to parameter.
If this parameter 0.0,process control output does not perform an output when
sensor breaks.
If cooling function is performed ; Cooling process set value
is calculated by adding set value with parameter
Control form can be ON/OFF or PID.
If set value for heating = + then
Set value for cooling = + +
SCALE LOW POINT: Minimum process input value in Pt -100 and TC inputs.
-1999 for fixed dual point display adjust-ment used inputs, Scale low point is
the lowest one from
or for selectable dual point display adjustment used inputs
display adjustment scale low point is the lowest one from or for
multipoint used inputs.
SCALE HIGH POINT: Maximum process input value in Pt-100 and TC inputs.
9999 for fixed dual point display adjust-ment used inputs, Scale high point is
the biggest one from
or for selectable dual point display adjustment used inputs
display adjustment scale high point is the biggest one from or
for multipoint used inputs.
Soft Start Set value
It can be adjusted from 0 to 9999 with increment and decrement buttons. If
parameter is selected , Soft start function becomes inactive.
When the device power on, if the Soft start set value different from and
temperature value is lower than soft start value on processes, device starts soft
start operation,until temperature reaches soft start set value. On soft start device
output period will be SSCt parameter value and device control output will be
SSCo parameter value.
