It determines output functions of Process Outputs
Heating
Cooling
It determines control algorithms of Process Outputs
Hysteresis value of Process Outputs.
It can be adjusted from 0% to 50% of full scale.( It is active if ON/OFF control
is selected. )
ON/OFF control algorithm.
PID control algorithm.
It determines operation form of hysteresis
( It is active if ON/OFF control is selected.)
In ON/OFF operation, this time must be passed for the output to be
energised again.It can be adjusted from 0.0 to 100.0 seconds.(It is active if
ON/OFF control is selected.)
SV + HYS/2 and SV - HYS/2
SV and SV+HYS or SV and SV-HYS

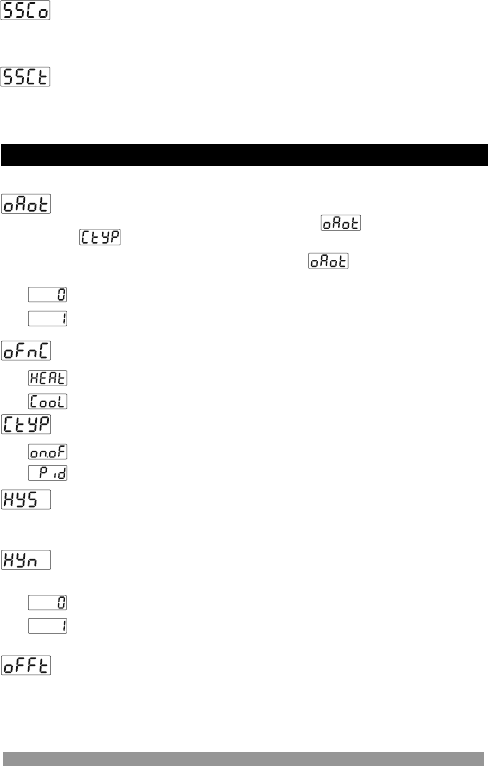

PCnF ConF: Process Output Configuration Parameters
If Process Output is chosen Current Output, then parameter is shown
and Parameter can be adjust only PID mode.
0-20 mA Output
4-20 mA Output
It determines output functions of Process Outputs
If Process Output is chosen Relay Output, then parameter is invisible.
Soft Start Control Output
Soft Start Control Period
It can be adjusted from %10 to %90 with increment and decrement buttons.
It can be adjusted from 1 to 100 sec with increment and decrement buttons.
