Instruction manual

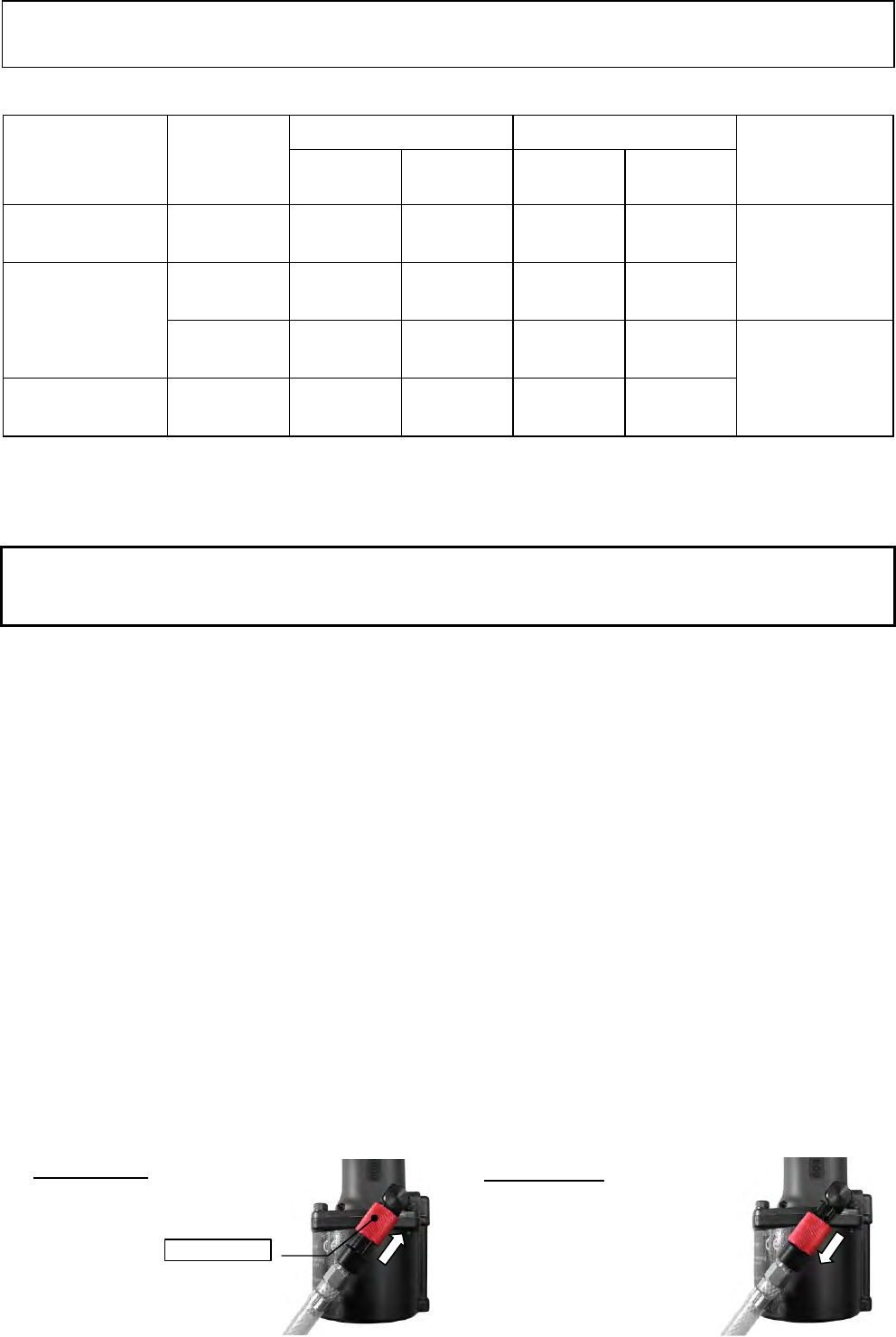

Common Nosepieces
Closed End HR Rivets
Rivet Diameter Open End Jaw Pusher
Steel
Mandrel
Aluminum
Mandrel
Aluminum
Body
Steel
Body
1/8” (3.2 mm) or
7/64” (2.8 mm)
PRN414* PRN424 PRN434 PRN414* PRN4K
FAN275-028*
PRN514* PRN524 PRN534 PRN514* -
5/32” (4.0 mm)
- -
- - PRN5K
DPN275-027*
3/16” (4.8 mm)
PRN614* PRN624 PRN634 PRN614* PRN6K
* Included with the tool
Use FAN275-028 instead of DPN275-0
27 (installed) when using 7/64” (2.8mm) - 5/32” (4.0mm).
Use N-406 nosepiece when using 3/16” (4.8mm) UltraGrip
® ®
rivets; use N-410 for Monobolt rivets.
Basic Tool Operation
Before operating the tool check the following:
 Inspect tool for damage or leaking oil – do not use tool if it is damaged or leaking oil.
 Check that correct nosepiece is fitted and tightened to 60 - 65 in-lbs [6.8 – 7.3 N-m] torque.
 Check that the nose housing nut (8) is tight – hand tighten only.
 Connect tool to air supply – see air supply requirements (page 4).
 Fit Mandrel Collector (96) – (MCS tool only).
 Open air supply valve by Sliding red OS Sleeve (93) on side of tool (see note below).
 Insert rivet into nosepiece.
 Position rivet in work piece.
 Pull trigger to set rivet.
 Release trigger – if equipped, MCS suction will draw mandrel into the collector.
! Note: The ProSet™ 2500 has an OS (Open-Shut) Valve for switching the air supply ON and OFF to
save air when the tool is not in use.
Air Supply ON : Open OS Valve
by sliding OS Slider in the
direction shown (up).
A
ir Supply OFF: Close OS Valve
by sliding OS Slider in the
direction shown (down).
OS Slide
r
