Micro Motion
®
Series 3000 Transmitters and Discrete Controllers 13
Dimensions continued

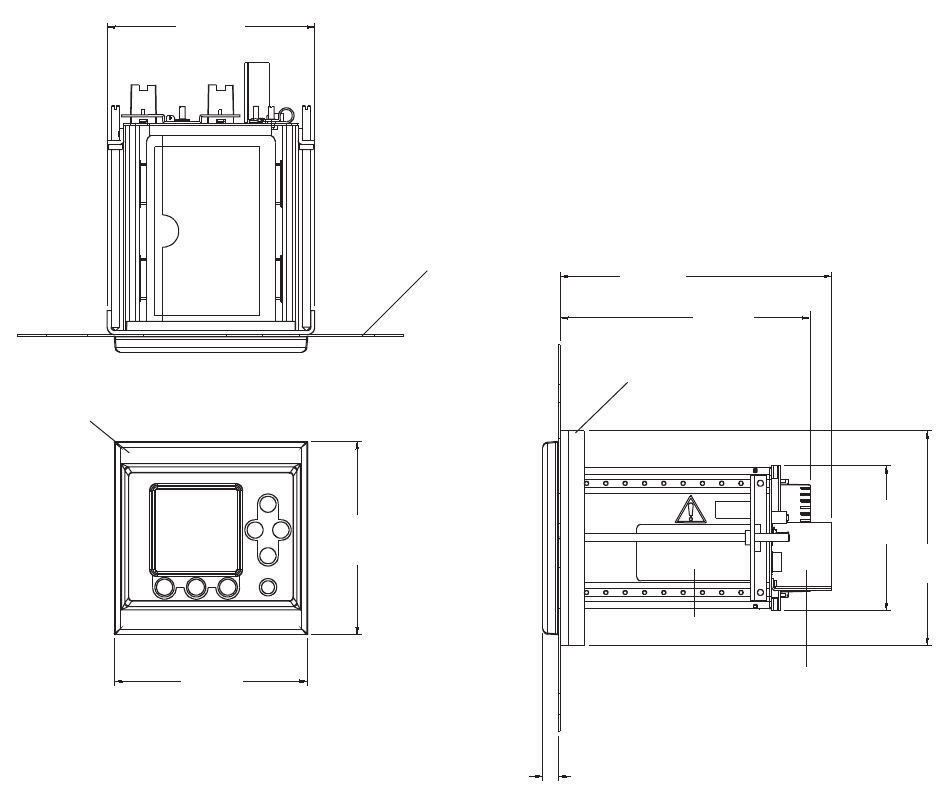

Panel-mount Model 3300/3500 with screw-type connectors
Dimensions in
inches
(mm)
Bezel
6
(152)
1/2
(12)
7 3/4
(197)
8 1/2
(216)
6 1/2
(165)
Frame
Panel
6
(152)
Approvals tag
4 1/2
(114)
6 11/16
(170)
Intrinsic safety barrier
(Model 3500 only)
