4.0 Installation Instructions
4.1 Unpacking
Upon receipt of the unit, immediately inspect the enclosure(s) and contents for
obvious signs of damage and/or mishandling (loose parts, enclosure dents or
holes). If damaged, photograph the unit, inform the carrier, and contact SolaHD
for a Return Material Authorization (RMA) number.
4.2 Mounting
Theunitmustbemountedonaconcreteoororothernon-ammablesurface.

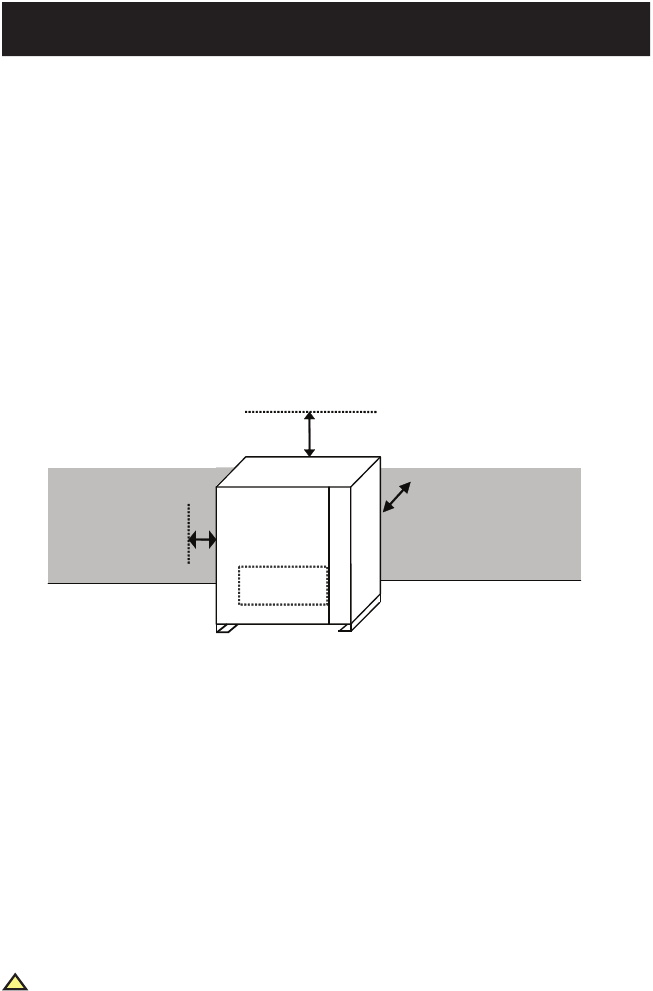

The minimum spacing around the enclosure must be as indicated in Figure 1 to
ensure adequate ventilation.
FRONT
4″ minimum
clearance
(both sides)
4″ minimum
clearance
(back)
12″ minimum
clearance (top)
Figure 1. Minimum spacing requirement, excluding spacing required for condit
entry/exit.
4.3 Environmental
The following environmental conditions must be met:
•Ambient Temperature: 0°C – 40°C (32°F – 104°F)
•Relative Humidity: 95%, non-condensing
•Surroundingairfreeofammableorcombustiblematerials
•Enclosurenotsubjectedtofallingorsplashingwater,unlessspecicprecautions
have been taken to protect the unit (i.e., NEMA3 or 3R enclosure)
!
Warning! Failuretocomplywiththeaboveenvironmentalconditions
voidsthewarranty.
