44 ProLink
®
II Software for Micro Motion
®
Transmitters
Initial Transmitter Startup Procedures

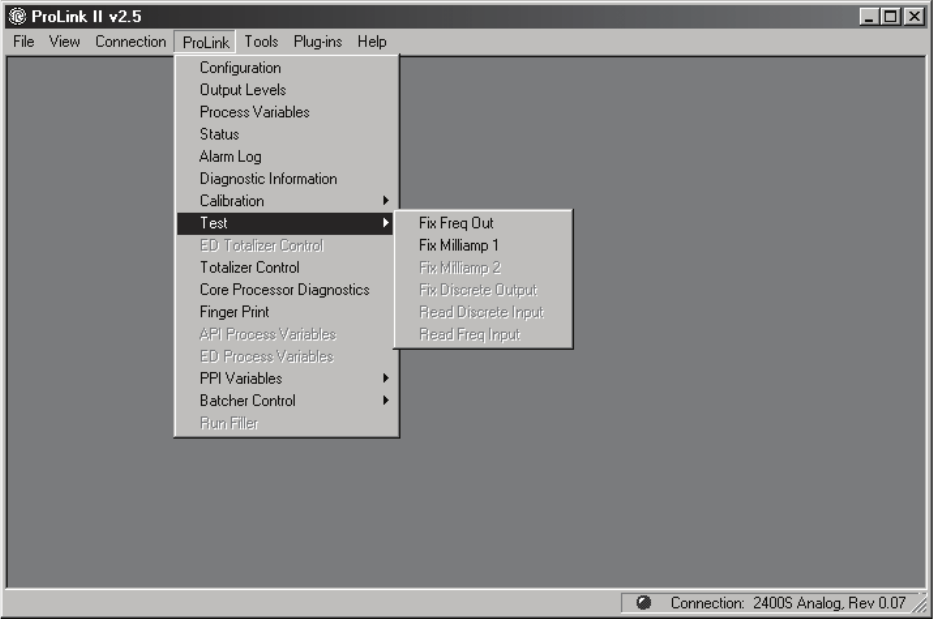

Figure 4-1 ProLink II loop test options
To perform loop tests with ProLink II, see Figure 4-2.
If you are testing an mA output, the mA reading does not need to be exact. You will correct
differences when you trim the mA output. See Section 4.3.
