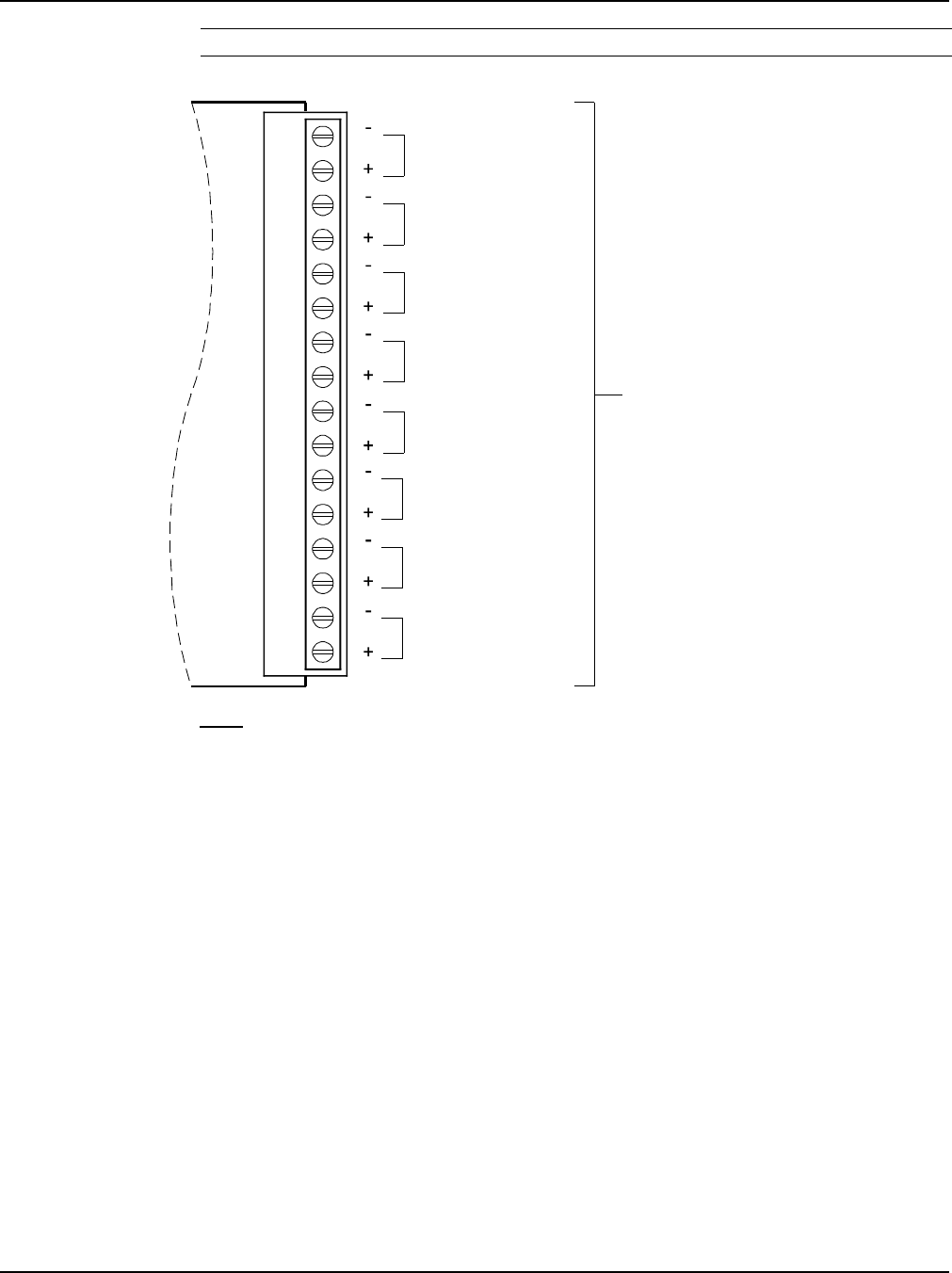

Detail I2 - LMS 8 Input Analog Circuit Card (P/N 514528)
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
A8
A7
A6
A5
A4
A3
A2
A1
50 mv Shunts Only
50 mv Shunts Only
50 mv Shunts Only
50 mv Shunts Only
50 mv Shunts Only
50 mv Shunts Only
50 mv Shunts Only
50 mv Shunts Only
Note:
LMS 8-INPUT ANALOG
CIRCUIT CARD (P/N 514528)
Analog input designations A1 through A8 as shown are for
the circuit card only. The actual analog channel number
depends upon the quantity of analog and temperature
circuit cards installed and location of this analog circuit
card in the system network.
Analog input
wiring connection
terminals
TB1
514528
