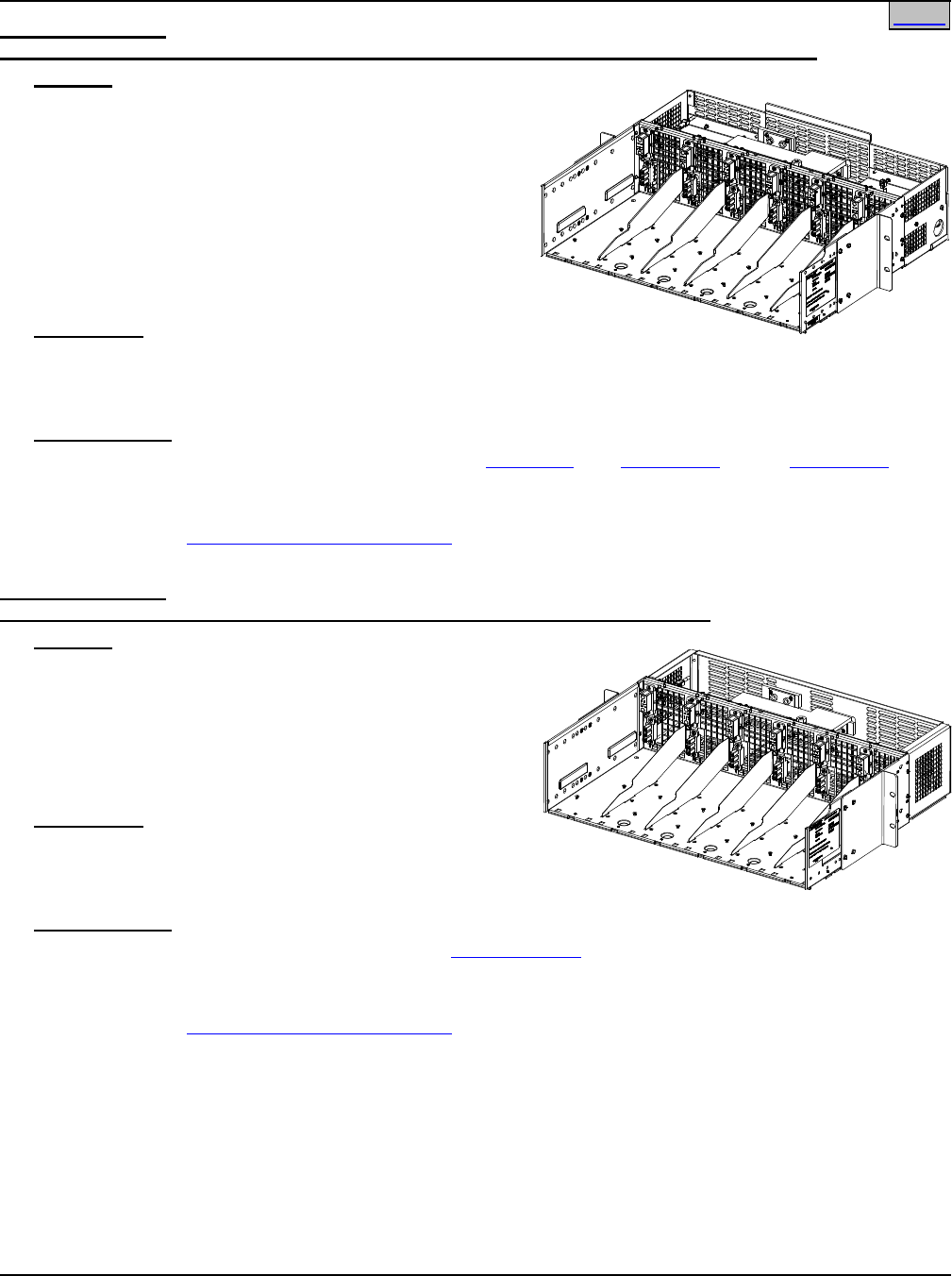

588705000 List 32:
Rectifier Module Mounting Shelf, 208/240VAC Three-Phase Input, AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with two (2)
three-phase AC input circuits. Each input circuit
powers three (3) single-phase rectifier modules.
♦ Terminal blocks provided for AC input connections.
Restrictions
To maintain phase balance, rectifier modules should be installed in groups of three (all three on left and/or all
three on right).
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order rectifier modules in groups of three per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 40:
Converter Module Mounting Shelf, 400V DC Input, No DC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6)
converter modules.
♦ NO terminal blocks provided for DC input connections.
Restrictions
Module mounting shelf MUST be factory wired into power
system.
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order converter modules as required per P/N 1C400483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
