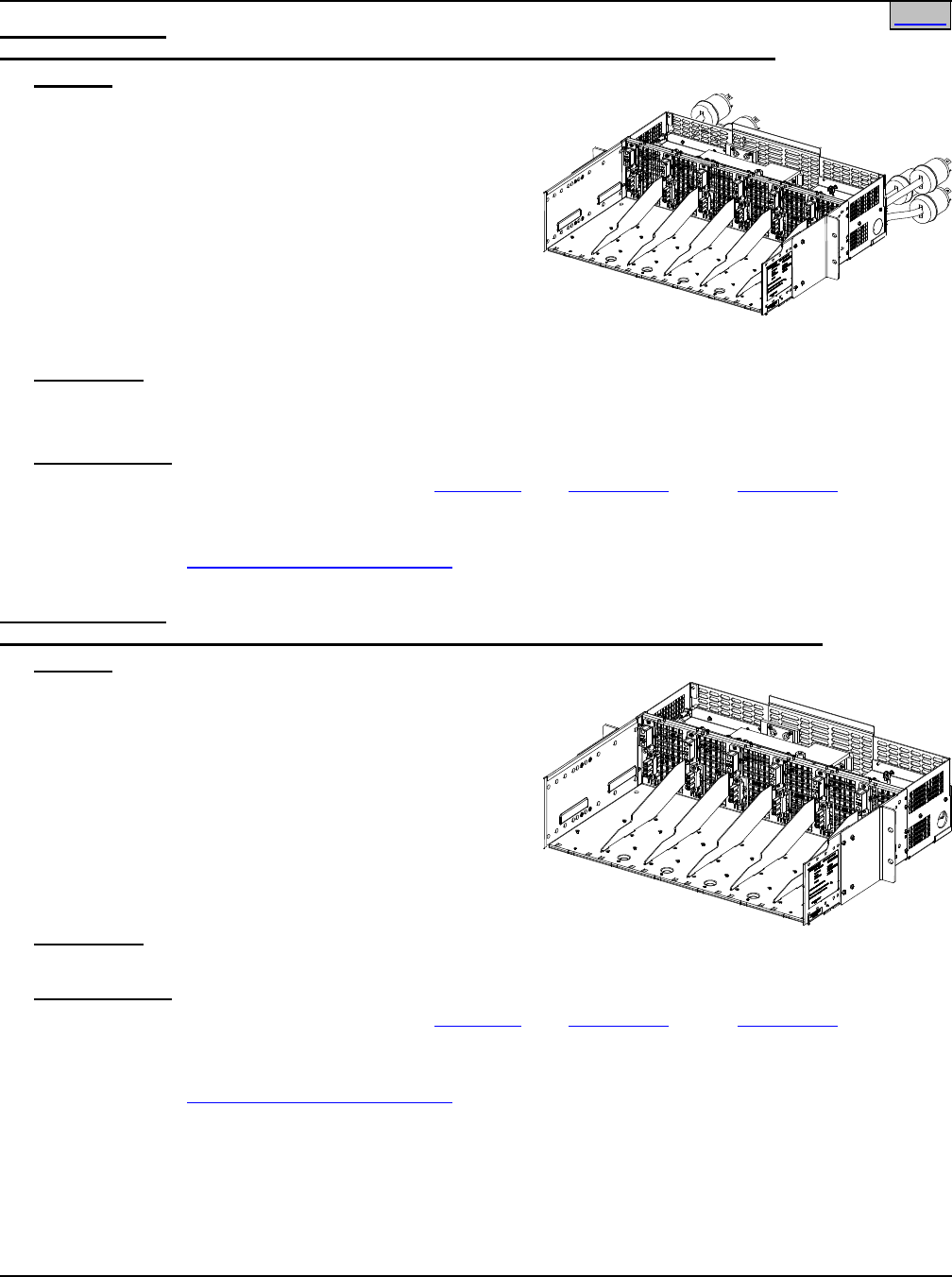

588705000 List 22:
Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Line Cords
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, six
AC input branch circuits per module mounting shelf).
♦ Factory wired AC input line cords equipped with
NEMA L6-30P twist-lock plugs provided. (Six per shelf, each 7.5’ long, 12/3 AWG.)
Restrictions
Line cord option can only be used up to 40°C ambient.
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 31:
Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, six
AC input branch circuits per module mounting shelf).
♦ Terminal blocks provided for AC input connections.
Restrictions
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
