Power Data Sheet PD588705000
Spec. No. 588705000 (Model PSS4850-23GV) Issue AP, September 12, 2013
Page 7 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

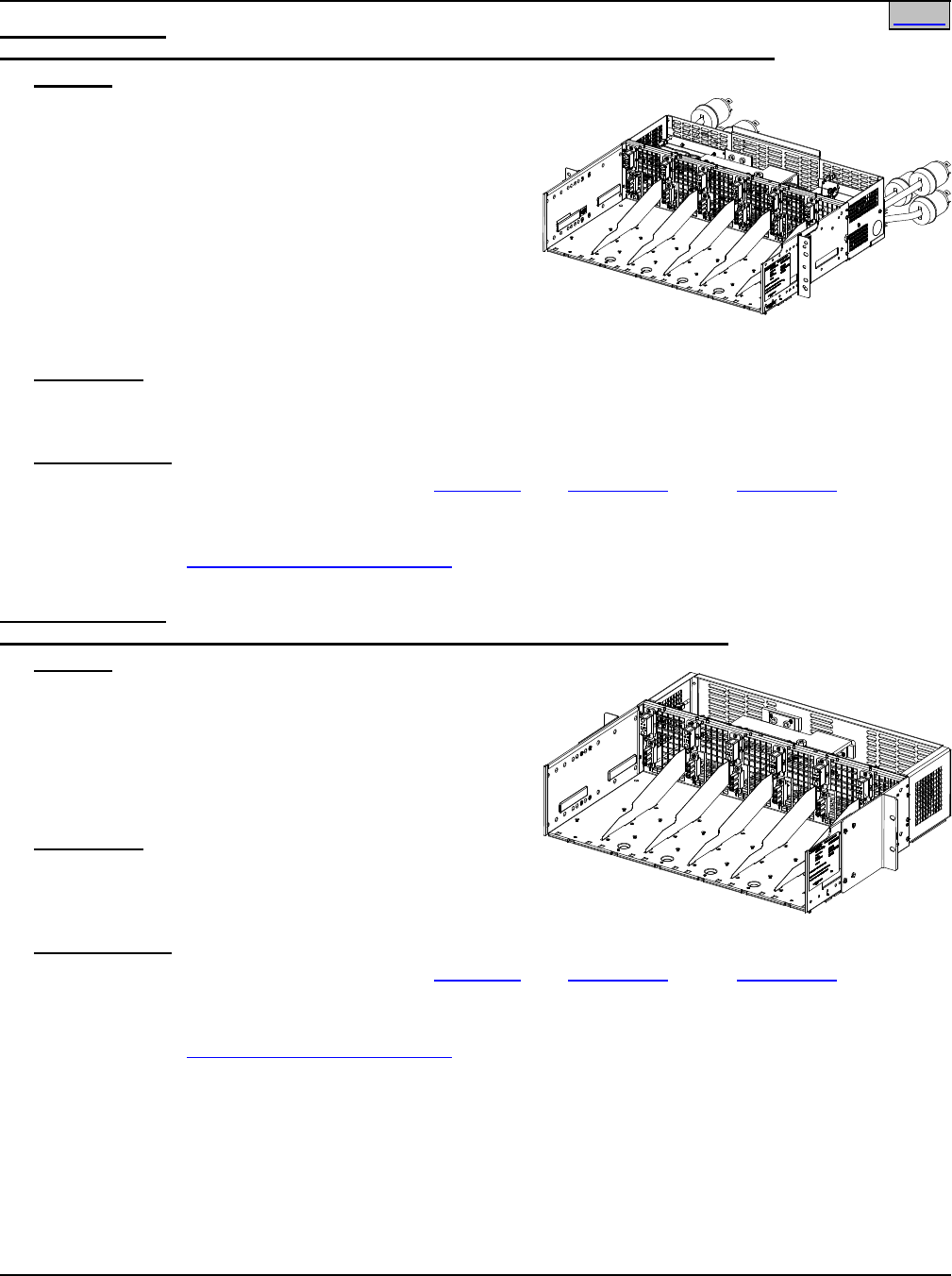

588705000 List 11:
Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Line Cords
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, six
AC input branch circuits per module mounting shelf).
♦ Factory wired AC input line cords equipped with
NEMA L6-30P twist-lock plugs provided. (Six per shelf, each 7.5’ long, 12/3 AWG.)
Restrictions
Line cord option can only be used up to 40°C ambient.
Relay rack mounting angle provides maximum six (6) inch front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 21:
Rectifier Module Mounting Shelf, 208/240VAC Input, No AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ NO terminal blocks provided for AC input connections.
Restrictions
Module mounting shelf MUST be factory wired into power
system.
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
