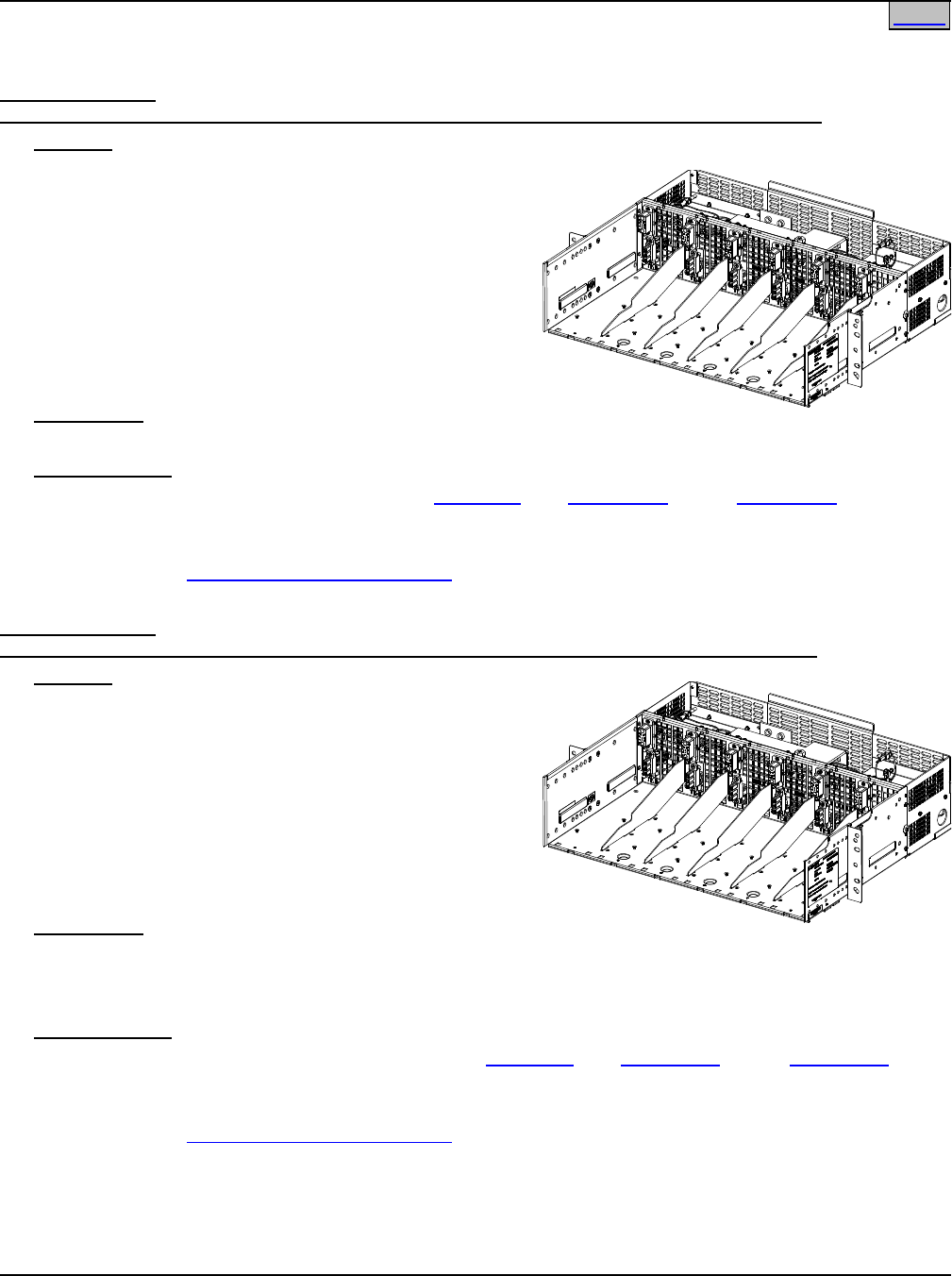

LIST DESCRIPTIONS
List Numbers
588705000 List 1:
Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, six
AC input branch circuits per module mounting shelf).
♦ Terminal blocks provided for AC input connections.
Restrictions
Relay rack mounting angle provides maximum six (6) inch front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 3:
Rectifier Module Mounting Shelf, 208/240VAC Three-Phase Input, AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with two (2)
three-phase AC input circuits. Each input circuit
powers three (3) single-phase rectifier modules.
♦ Terminal blocks provided for AC input connections.
Restrictions
To maintain phase balance, rectifier modules should be installed in groups of three (all three on left and/or all
three on right).
Relay rack mounting angle provides maximum six (6) inch front projection.
Ordering Notes
1) Order rectifier modules in groups of three per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
