PD588705000 Power Data Sheet
Issue AP, September 12, 2013 Spec. No. 588705000 (Model PSS4850-23GV)
Page 40 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

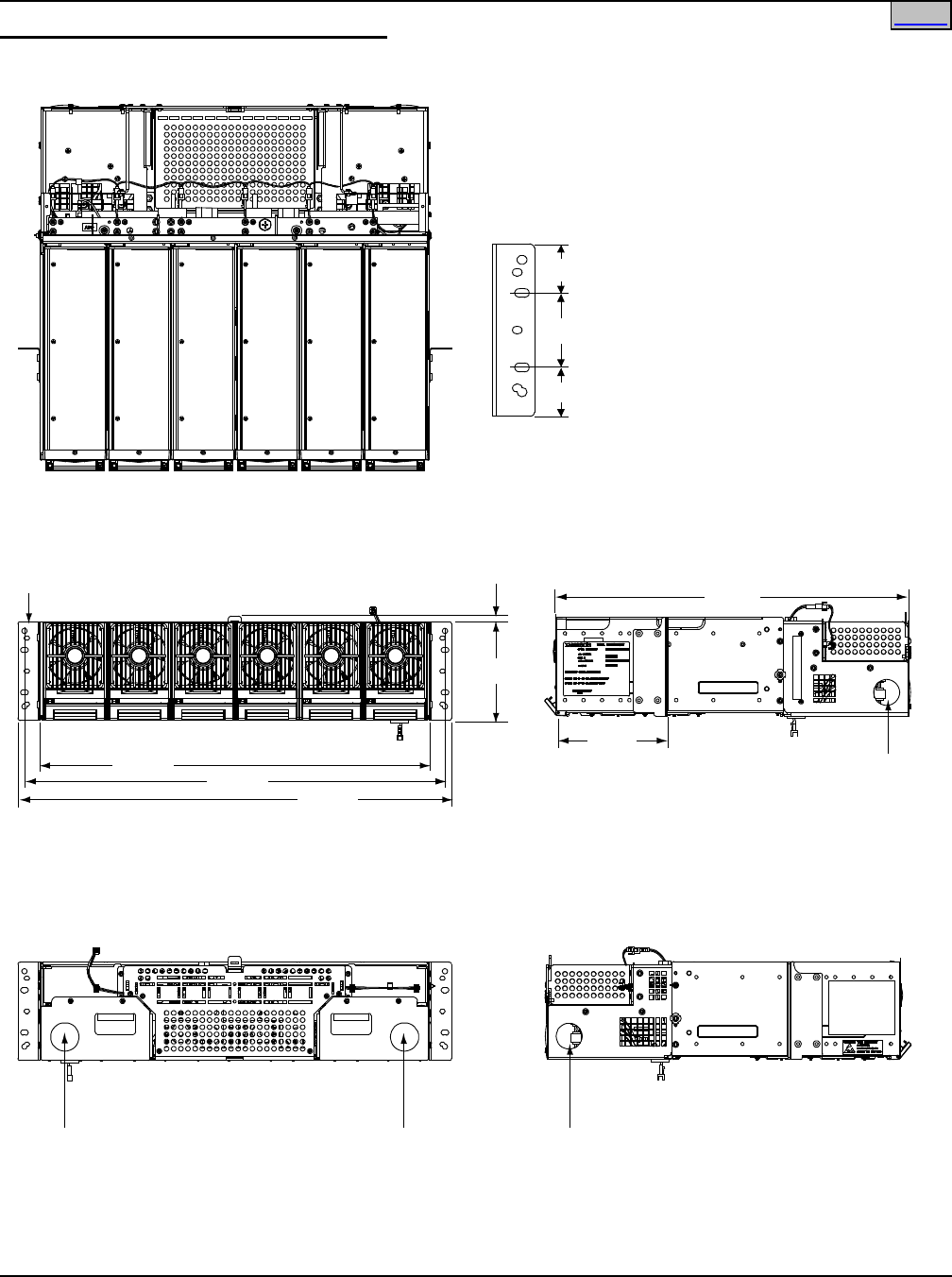

Module Mounting Shelf (List 51, 52, and 53)
List 51 Shown.
Figure 15
Notes:
1. All dimensions are in inches,
unless otherwise specified.
2. Weight in LBS.
Shelf
Net: 21
Shipping: 22
Rectifier Module
Net: 7
Shipping: 8
3. Finish:
Shelf and Rectifier Module Bodies:
Bright Zinc Plating
Rectifier Module Face Plates:
Textured Gray
4. Mounting angles are positioned for a
fixed 6-inch front projection mounting
.
1.484
2.250
Mounting
Angle Detail
1.484
Top View
See Mounting Angle Detail
20.638
0.688
22.312
23.000
18.760
5.970
Right Side View
Front View
Hole for 1”
C
onduit Filling
(AC Input)
Hole for 1”
Conduit Filling
(AC Input)
Hole for 1”
Conduit Filling
(AC Input)
Rear View Left Side View
Hole for 1”
Conduit Filling
(AC Input)
5.217
