Power Data Sheet PD588705000
Spec. No. 588705000 (Model PSS4850-23GV) Issue AP, September 12, 2013
Page 37 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

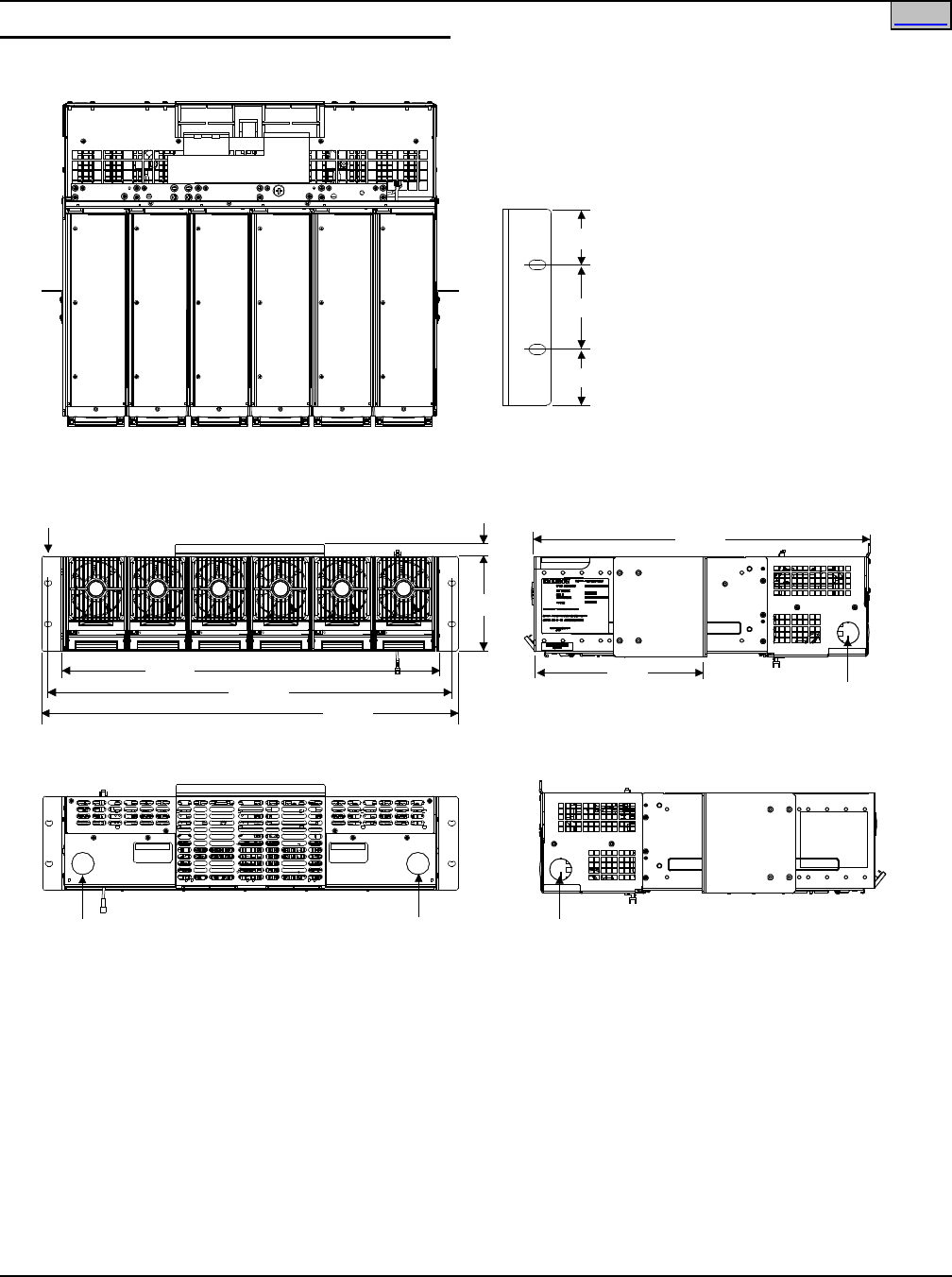

Module Mounting Shelf (List 22, 31, 32, 41, and 42)
List 31 Shown.
Figure 12
Notes:
1. All dimensions are in inches,
unless otherwise specified.
2. Weight in LBS.
Shelf
Net: 17
Shipping: 18
Rectifier/Converter Module
Net: 7
Shipping : 8
3. Finish:
Shelf and Module Bodies:
Bright Zinc Plating
Module Face Plates:
Textured Gray
4. Mounting angles are positioned for a
fixed 9-inch front projection mounting.
1.484
2.250
Mounting
Angle Detail
1.484
Top View
See Mounting Angle Detail
20.638
0.688
22.312
23.000
17.510
5.217
9.000
Right Side View
Front Vi
ew
Hole for 3/4”
Conduit Filling
(Input)
Hole for 3/4”
Conduit Filling
(Input)
Hole for 3/4”
Conduit Filling
(Input)
Rear View
Left Side View
Hole for 3/4”
Conduit Filling
(Input)
