PD588705000 Power Data Sheet
Issue AP, September 12, 2013 Spec. No. 588705000 (Model PSS4850-23GV)
Page 36 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

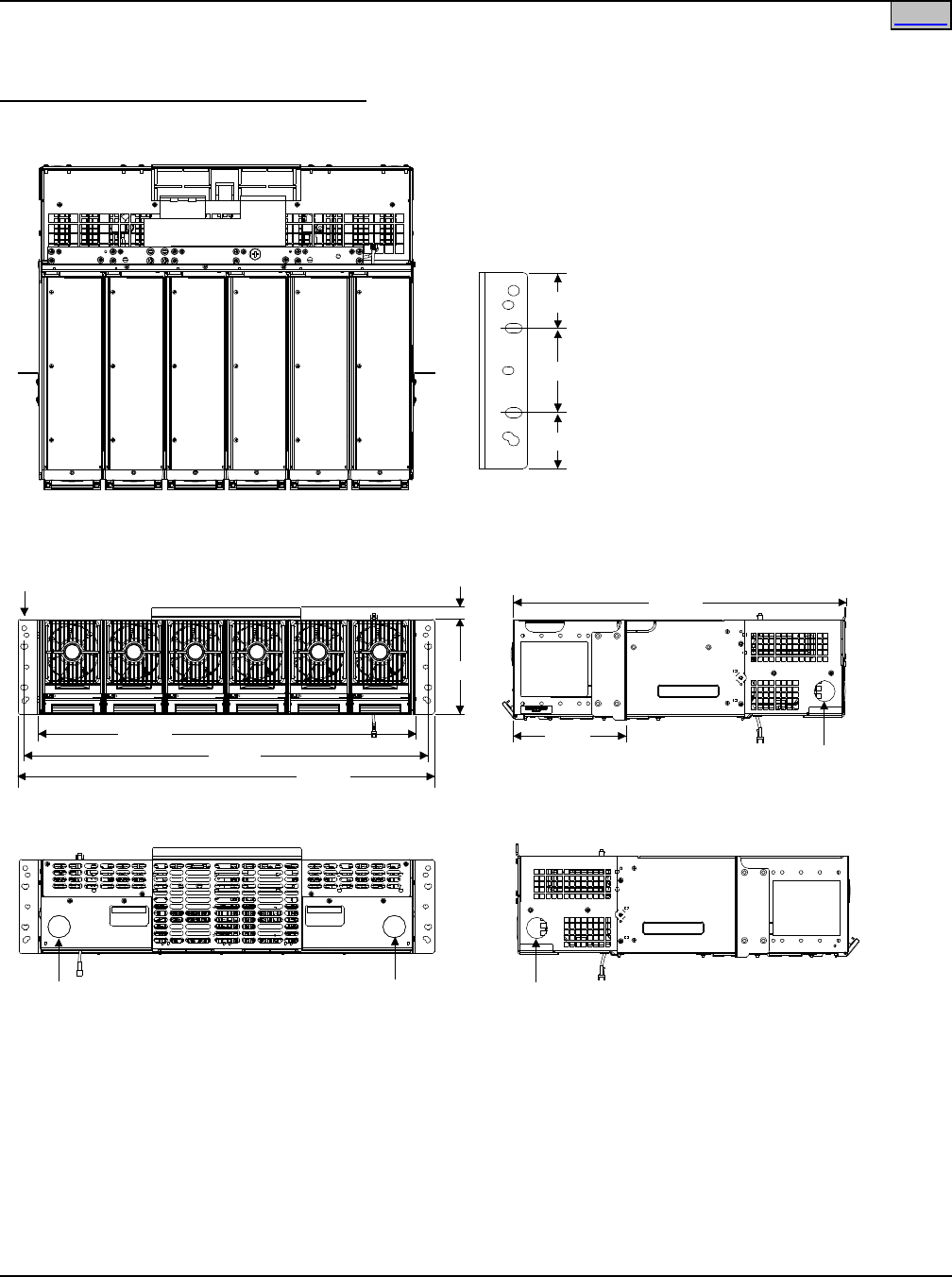

MECHANICAL SPECIFICATIONS
Overall Dimensions
Module Mounting Shelf (List 1, 3, and 11)
List 1 Shown.
Figure 11
Notes:
1. All dimensions are in inches,
unless otherwise specified.
2. Weight in LBS.
Shelf
Net: 17
Shipping: 18
Rectifier Module
Net: 7
Shipping : 8
3. Finish:
Shelf and Rectifier Module Bodies:
Bright Zinc Plating (M500-53)
Rectifier Module Face Plates:
Textured Gray (M500-147)
4. Mounting angles may be positioned from
flush front mounting to 6-inch front projection
mounting, in 1-inch increments.
1.484
2.250
Mounting
Angle Detail
1.484
Top View
See Mounting Angle Detail
20.638
0.688
22.312
23.000
17.510
5.217
5.970
Right Side View
Front View
Hole for 3/4”
Conduit Filling
(AC Input)
Hole for 3/4”
Conduit Filling
(AC Input)
Hole for 3/4”
Conduit Filling
(AC Input)
Rear View
Left Side View
Hole for 3/4”
Conduit Filling
(AC Input)
