PD588705000 Power Data Sheet
Issue AP, September 12, 2013 Spec. No. 588705000 (Model PSS4850-23GV)
Page 32 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

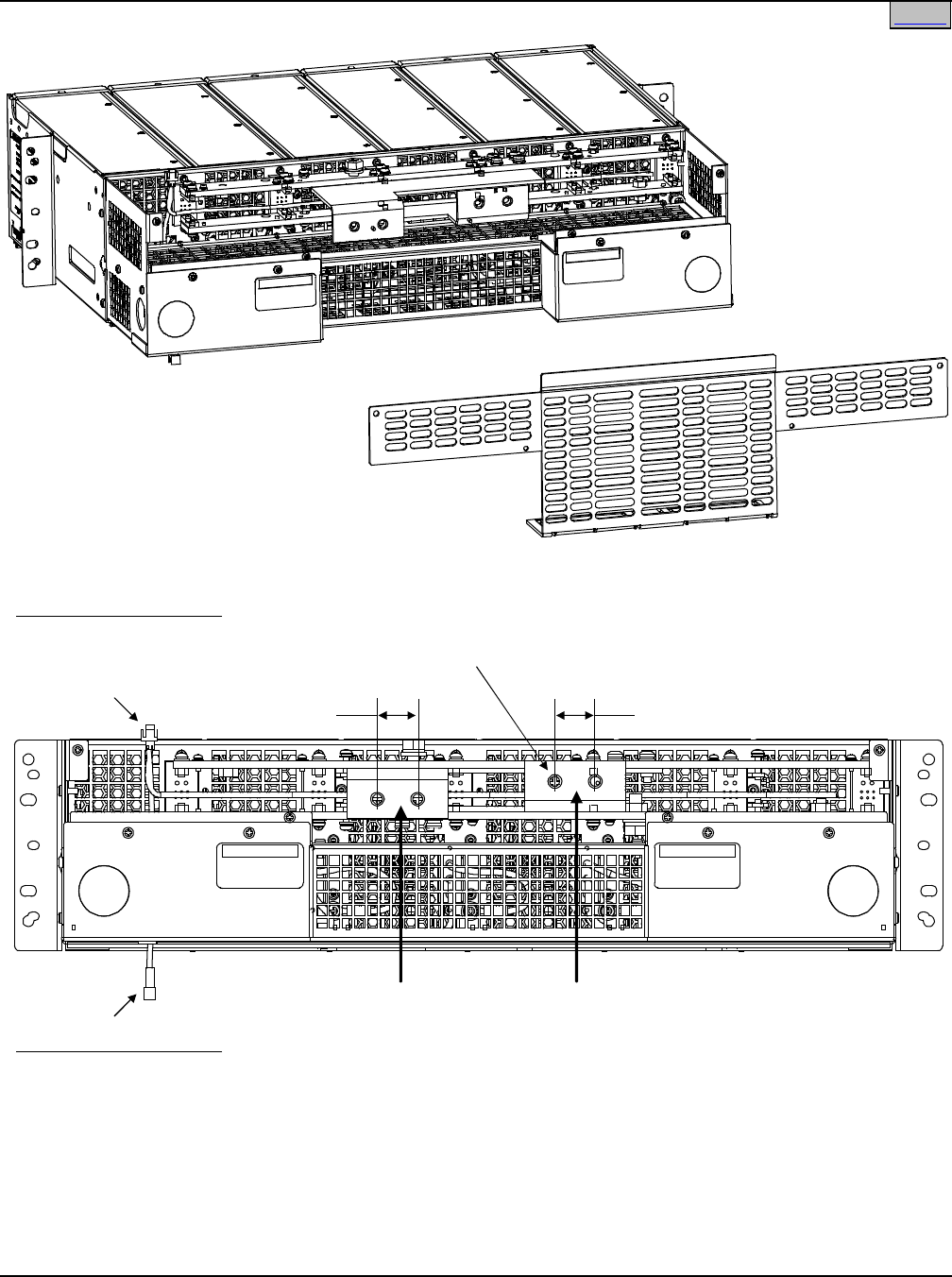

Figure 9
DC Output and Alarm/Control Connections
(List 1, 3, 11, 21, 22, 31, 32, 40, 41, 42)
Rear View
Negative
Output
(-)
Positive
Output
(+)
1.00" 1.00"
1/4-20 Captive Fastener
(4 Places, 2 per Polarity)
Rear View
to Controller if Top Shelf
or
to Shelf Mounted Above
to Shelf Mounted Below
Alarm & Control
Connections Between
Shelves and Controller
Alarm & Control
Connections Between
Shelves and Controller
