PD588705000 Power Data Sheet
Issue AP, September 12, 2013 Spec. No. 588705000 (Model PSS4850-23GV)
Page 28 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

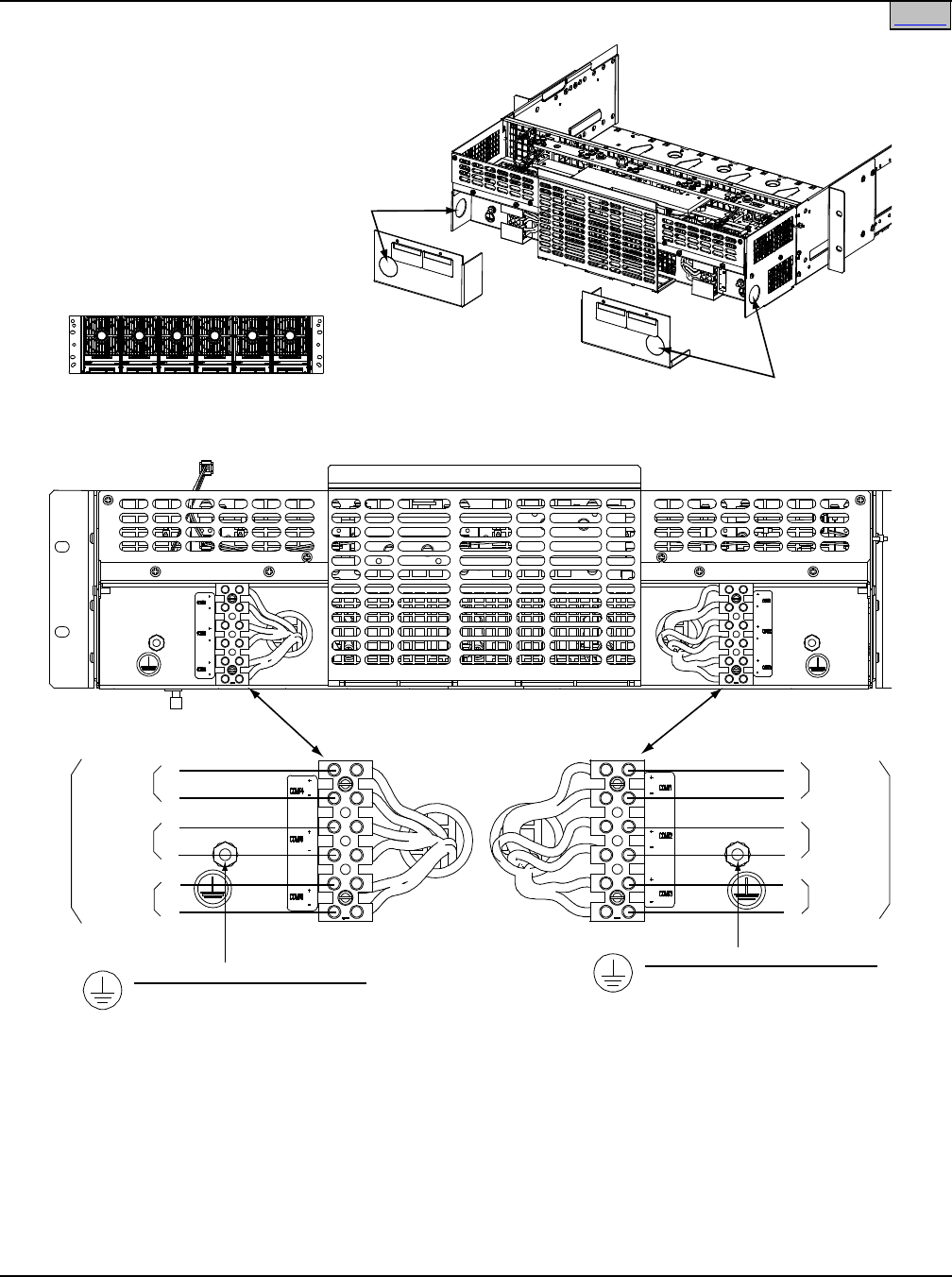

Figure 7
List 41 DC Input and Frame Ground Connections (Terminal Blocks)
Holes for 3/4"
Conduit Fitting
(Input)
Holes for 3/4"
Conduit Fitting
(Input)
Rear View
Rear View
Converter Module Mounting Slots
(front view)
Conv.
1
Conv.
2
Conv.
3
Conv.
4
Conv.
5
Conv.
6
Wire Size Capacity: 10-20 AWG.
Recommended Torque: 10 in-lbs.
FRAME
GROU
ND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
FRAME GROUND C
ONNE
CTION
ONE 10-32
X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
+
-
+
-
400VDC
IN
Converter
Module 4
Converter
Module 5
Converter
Module 6
Converter
Module 1
Converter
Module 2
Converter
Module 3
+
-
+
-
+
-
+
-
INDIVIDUAL 400VDC CONVERTER FEEDS
1 FEED PER CONVERTER
