Power Data Sheet PD588705000
Spec. No. 588705000 (Model PSS4850-23GV) Issue AP, September 12, 2013
Page 19 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

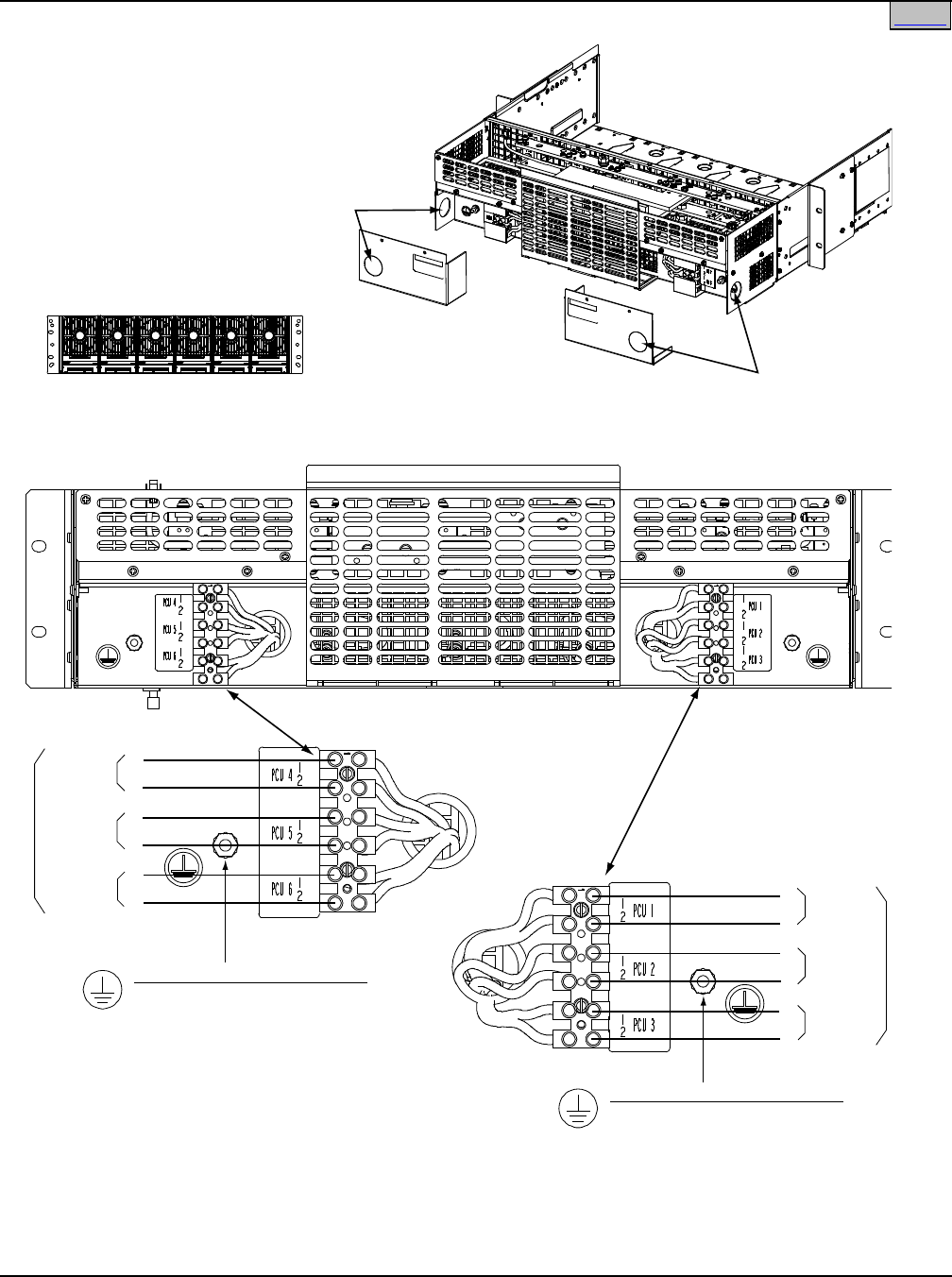

Figure 1
List 1 and 31 AC Input and Frame Ground Connections (Single-Phase Input) (Terminal Blocks)
Holes for 3/4"
Conduit Fitting
(AC Input)
Holes for 3/4"
Conduit Fitting
(AC Input)
Rear View
Rear View
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE.
Recommended torque: 23 in-lbs.
Rectifier Module (PCU) Mounting Slots
(front view)
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
1
2
1
2
AC
IN
Rectifier
Module 4
1
2
Rectifier
Module 5
Rectifier
Module 6
Rectifier
Module 1
Rectifier
Module 2
Rectifier
Module 3
1
2
1
2
1
2
RECTIFIER (PCU) AC INPUT FEEDS
INDIVIDUAL RECTIFIER (PCU) FEED
208-240VAC, 50/60Hz, SINGLE PHASE
Wire Size Capacity: 10-24 AWG.
Recommended Torque: 10 in-lbs.
Wire Size Capacity: 10-24 AWG.
Recommended Torque: 10 in-lbs.
