Power Data Sheet PD588705000
Spec. No. 588705000 (Model PSS4850-23GV) Issue AP, September 12, 2013
Page 17 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

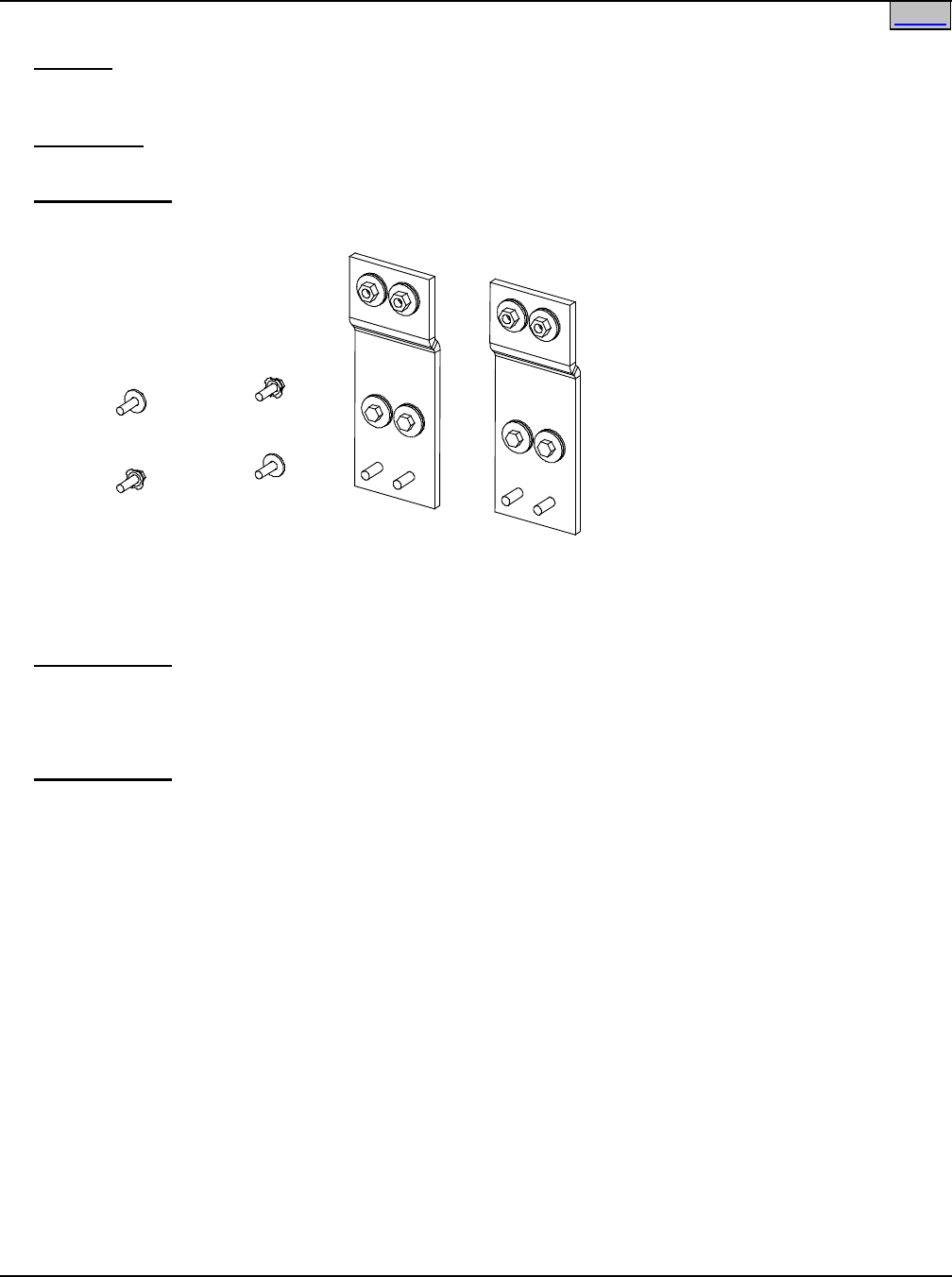

Adding Additional Shelf in Field Output Busbar Kit
Features
♦ Kit to tie the DC output busbars in a field installed module mounting shelf to the DC busbars in a Spec.
No. 582126000 or 582127000 NetSure Power System.
Restrictions
Not for use with List 51, 52, 53, 61, 62, or 63.
Ordering Notes
1) Order kit P/N 529139 for each module mounting shelf to be added in the field.
User Replaceable Cables
Ordering Notes
1) Refer to the power system’s SAG (System Application Guide) for part numbers.
User Replaceable Components
Ordering Notes
1) Rectifier Module Fan: P/N 32010086 for 1R483200 rectifier module.
P/N 32010109 for 1R483200E and 1R483500E rectifier module.
2) Converter Module Fan: P/N 32010109 for 1C400483500E converter module.
S
helf
Mou
nti
ng Hardware
Int
erco
nnec
tin
g Busbars
and Hard
war
e
