Power Data Sheet PD588705000
Spec. No. 588705000 (Model PSS4850-23GV) Issue AP, September 12, 2013
Page 15 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
ACCESSORY DESCRIPTIONS

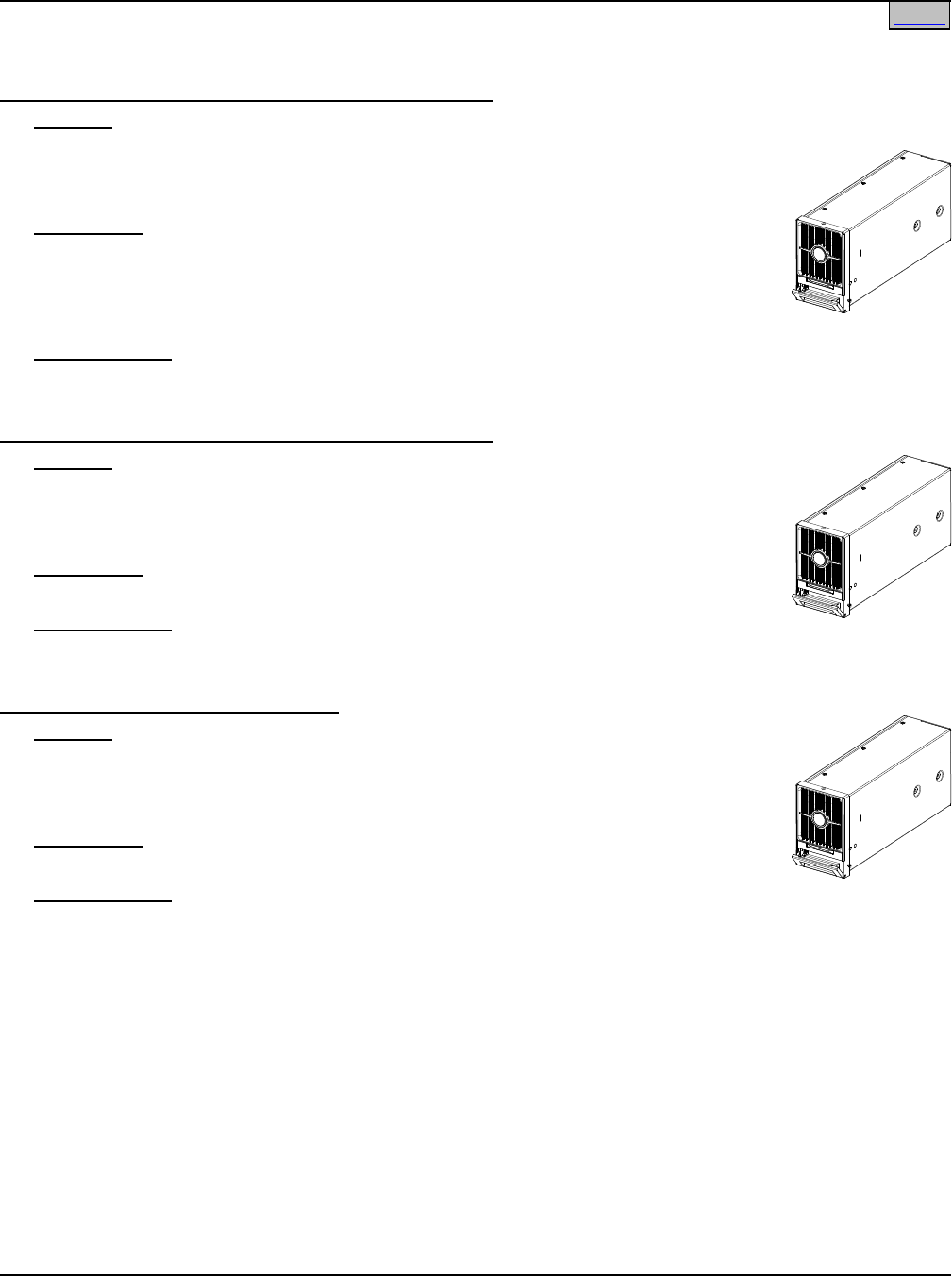

Rectifiers
High Efficiency Rectifier Module (PCU), P/N 1R483500E
Features
♦ Provides one (1) Model R48-3500e, Spec. No. 1R483500E,
3500 watt / -48 volt rectifier module.
♦ Refer to the Rectifier Instructions (UM1R483500E) for more information.
Restrictions
Refer to the power system’s SAG (System Application Guide) for any compatibility
issues in using this rectifier in power systems manufactured before this rectifier was
available.
For use in List 1, 3, 11, 21, 22, 31, 32, 51, 52, 53, 61, 62, and 63 shelves.
Ordering Notes
1) Order as required.
High Efficiency Rectifier Module (PCU), P/N 1R483200E
Features
♦ Provides one (1) Model R48-3200e, Spec. No. 1R483200E,
3200 watt / -48 volt rectifier module.
♦ Refer to the Rectifier Instructions (UM1R483500E) for more information.
Restrictions
For use in List 1, 3, 11, 21, 22, 31, 32, 51, 52, 53, 61, 62, and 63 shelves.
Ordering Notes
1) Order as required.
Rectifier Module (PCU), P/N 1R483200
Features
♦ Provides one (1) Model R48-3200, Spec. No. 1R483200,
3200 watt / -48 volt rectifier module.
♦ Refer to the Rectifier Instructions (UM1R483500E) for more information.
Restrictions
For use in List 1, 3, 11, 21, 22, 31, 32, 51, 52, 53, 61, 62, and 63 shelves.
Ordering Notes
1) Order as required.
