Power Data Sheet PD588705000
Spec. No. 588705000 (Model PSS4850-23GV) Issue AP, September 12, 2013
Page 13 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.
3) Order one (1) ACU+ controller, P/N 1M820DNA.
4) Refer also to “ACCESSORY DESCRIPTIONS”.

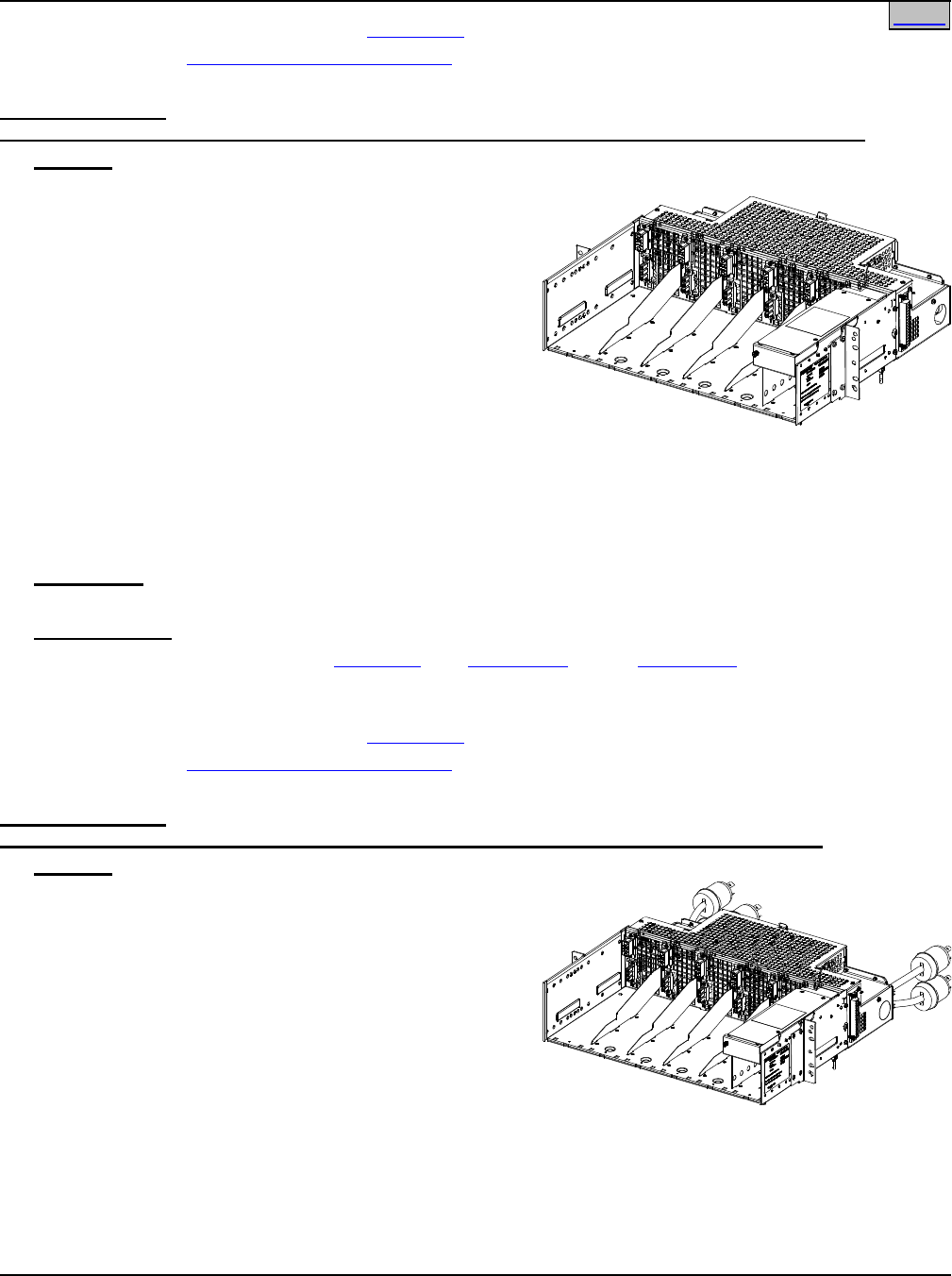

588705000 List 62:
Main Rectifier Module Mounting Shelf, 208/240VAC Three-Phase Input, AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 364A/17500W).
♦ This module mounting shelf holds up to five (5)
rectifier modules and one (1) ACU+ Controller.
♦ This module mounting shelf is equipped with two (2)
three-phase AC input circuits. One input powers three
(3) single-phase rectifiers (left side) and one input
powers two (2) single-phase rectifiers (right side).
♦ Terminal blocks provided for AC input connections.
♦ Also provided is the system interface board which
provides two (2) external battery fuse alarm inputs, four (4) external load fuse alarm inputs, one (1) load
shunt input, one (1) battery shunt input, one (1) LVD driver output, one (1) LVD sense input, and RS-485
port.
♦ Also provided is the IB2 ACU+ interface board which provides eight (8) programmable form-C relay
outputs, eight (8) programmable binary inputs, and two (2) temperature inputs.
Restrictions
Relay rack mounting angles fixed at 6” front projection.
Ordering Notes
1) Order rectifier modules per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Order one (1) ACU+ controller, P/N 1M820DNA.
4) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 63:
Main Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Line Cords
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 364A/17500W).
♦ This module mounting shelf holds up to five (5)
rectifier modules and one (1) ACU+ Controller.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, five
AC input branch circuits per module mounting shelf).
♦ Factory wired AC input line cords equipped with
NEMA L6-30P twist-lock plugs provided. (Five per shelf, each 7.5’ long, 12/3 AWG.)
♦ Also provided is the system interface board which provides two (2) external battery fuse alarm inputs, four
(4) external load fuse alarm inputs, one (1) load shunt input, one (1) battery shunt input, one (1) LVD
driver output, one (1) LVD sense input, and RS-485 port.
