PD588705000 Power Data Sheet
Issue AP, September 12, 2013 Spec. No. 588705000 (Model PSS4850-23GV)
Page 12 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

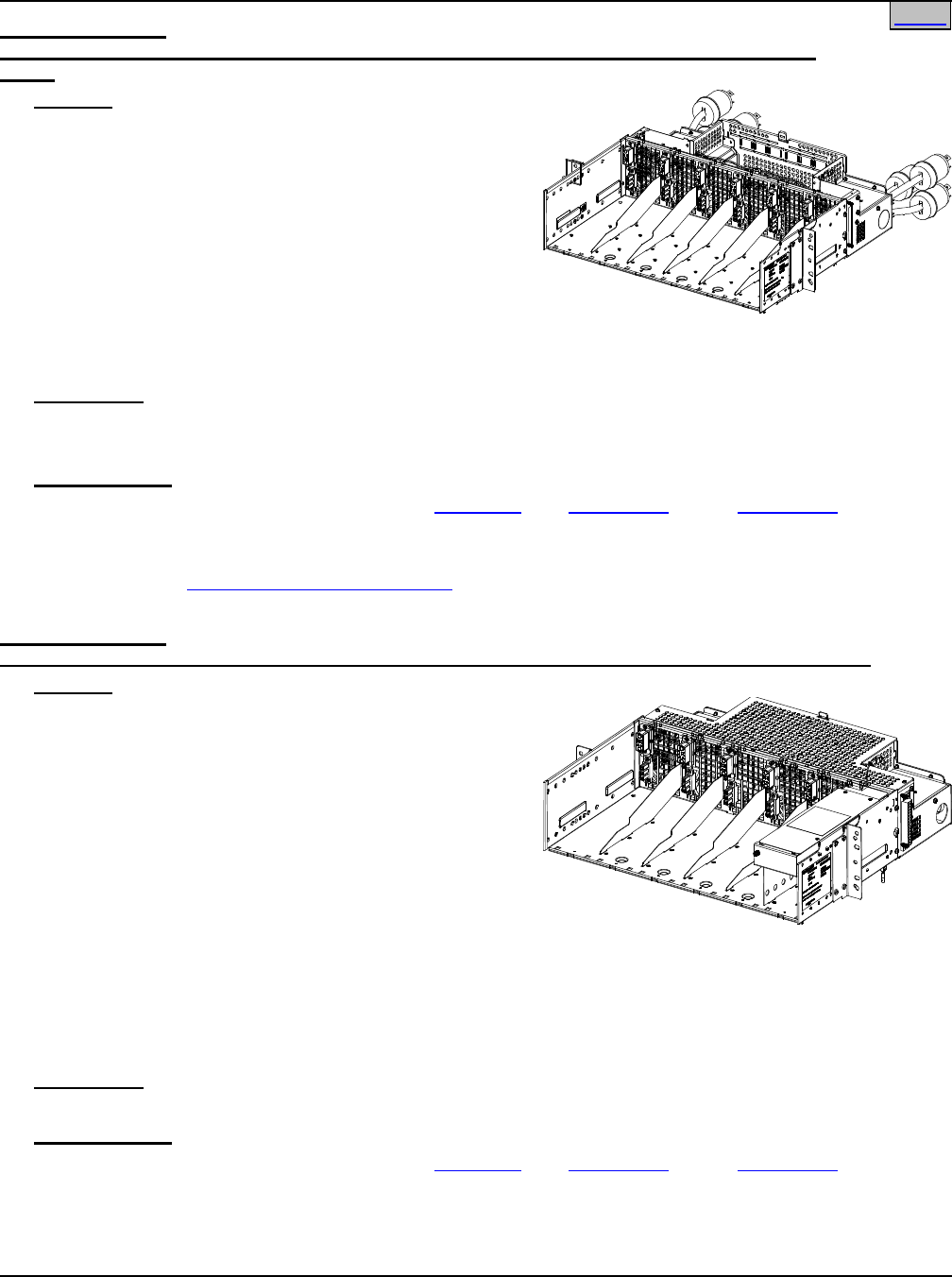

588705000 List 53:
Expansion Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Line
Cords
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6) rectifier
modules.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, six
AC input branch circuits per module mounting shelf).
♦ Factory wired AC input line cords equipped with NEMA L6-30P twist-lock plugs provided. (Six per shelf,
each 7.5’ long, 12/3 AWG.)
Restrictions
Line cord option can only be used up to 40°C ambient.
Relay rack mounting angles fixed at 6” front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 61:
Main Rectifier Module Mounting Shelf, 208/240VAC Single-Phase Input, AC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 364A/17500W).
♦ This module mounting shelf holds up to five (5)
rectifier modules and one (1) ACU+ Controller.
♦ This module mounting shelf is equipped with
individual rectifier module single-phase AC input feeds
(one AC input branch circuit per rectifier module, five
AC input branch circuits per module mounting shelf).
♦ Terminal blocks provided for AC input connections.
♦ Also provided is the system interface board which provides two (2) external battery fuse alarm inputs, four
(4) external load fuse alarm inputs, one (1) load shunt input, one (1) battery shunt input, one (1) LVD
driver output, one (1) LVD sense input, and RS-485 port.
♦ Also provided is the IB2 ACU+ interface board which provides eight (8) programmable form-C relay
outputs, eight (8) programmable binary inputs, and two (2) temperature inputs.
Restrictions
Relay rack mounting angles fixed at 6” front projection.
Ordering Notes
1) Order rectifier modules as required per P/N 1R483200, P/N 1R483200E, or P/N 1R483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
