PD588705000 Power Data Sheet
Issue AP, September 12, 2013 Spec. No. 588705000 (Model PSS4850-23GV)
Page 10 of 42
This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy
Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

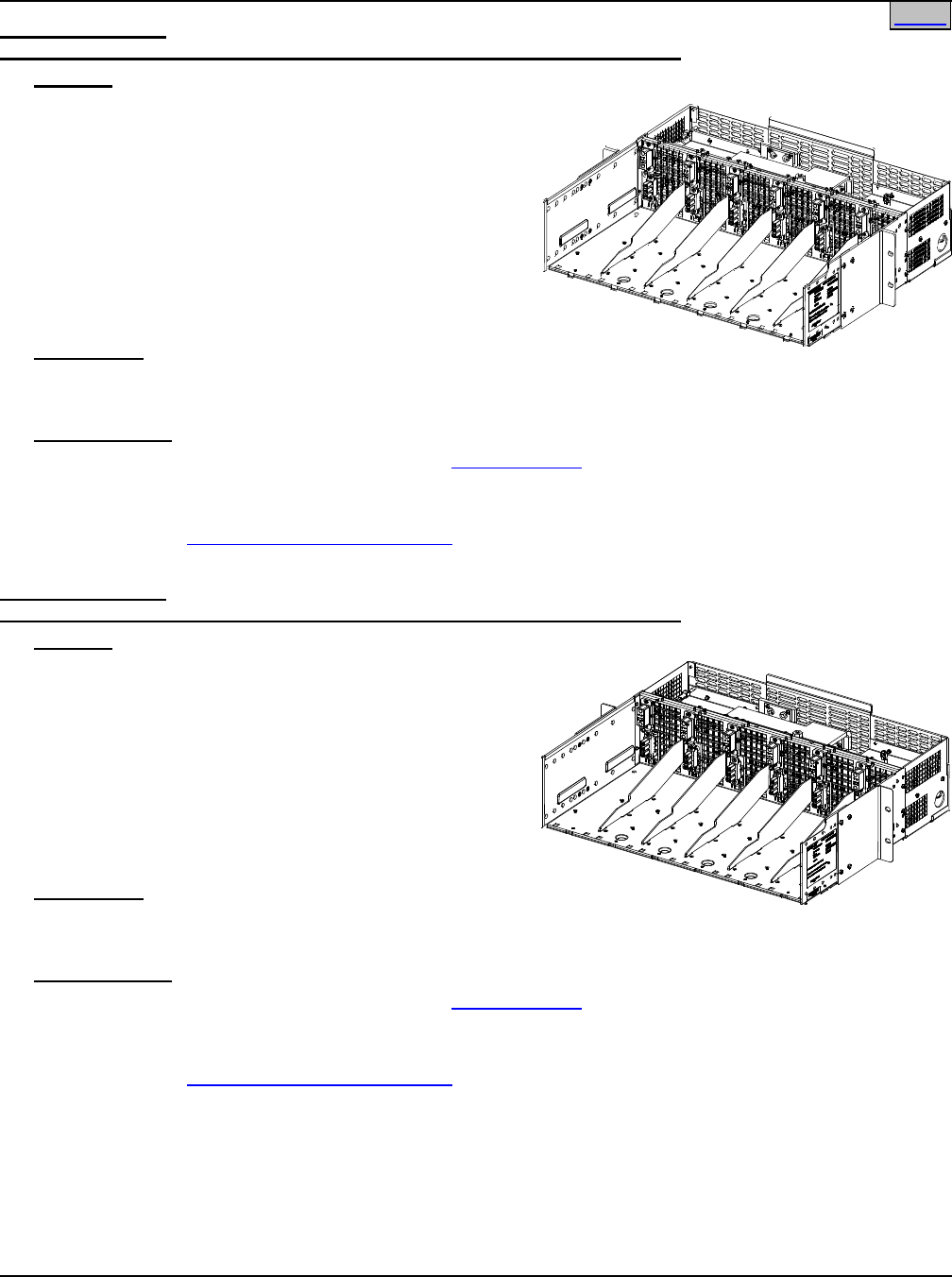

588705000 List 41:
Converter Module Mounting Shelf, 400V DC Input, DC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6)
converter modules.
♦ This module mounting shelf is equipped with
individual converter module DC input feeds (one DC
input branch circuit per converter module, six DC input
branch circuits per module mounting shelf).
♦ Terminal blocks provided for DC input connections.
Restrictions
DC inputs MUST be wired directly to the shelf.
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order converter modules as required per P/N 1C400483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
588705000 List 42:
Converter Module Mounting Shelf, 400V DC Input, DC Input Terminal Blocks
Features
♦ Provides one (1) Model PSS4850-23GV, Spec. No.
588705000 Module Mounting Shelf
(-48V, 437A/21000W).
♦ This module mounting shelf holds up to six (6)
converter modules.
♦ This module mounting shelf is equipped with two (2)
DC input circuits. Each input circuit powers three (3)
converter modules.
♦ Terminal blocks provided for DC input connections.
Restrictions
DC inputs MUST be wired directly to the shelf.
Relay rack mounting angles fixed at 9” front projection.
Ordering Notes
1) Order converter modules as required per P/N 1C400483500E.
2) Order a module mounting position blank cover panel, P/N 21140440, for each empty module mounting
position in the system, as desired.
3) Refer also to “ACCESSORY DESCRIPTIONS”.
