PD588705000

Power Data Sheet

Spec. No. 588705000 (Model PSS4850-23GV)

Issue AP, September 12, 2013

Page 1 of 42

This document is property of Emerson Network Power, Energy Systems, North America, Inc. and contains confidential and proprietary information owned by Emerson Network Power, Energy

Systems, North America, Inc. Any copying, use, or disclosure of it without the written permission of Emerson Network Power, Energy Systems, North America, Inc. is strictly prohibited.

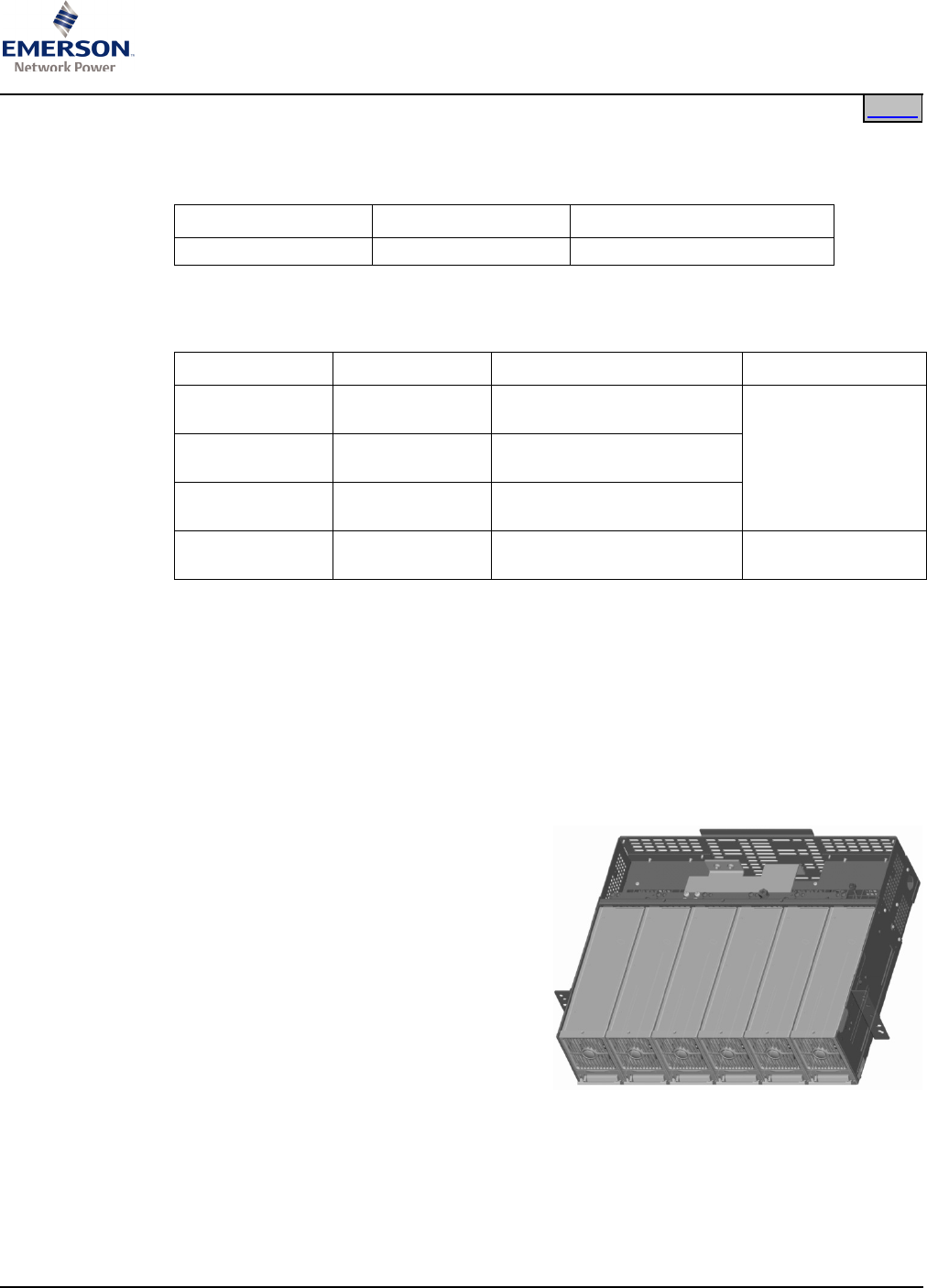

SYSTEM OVERVIEW

Preface: This document provides power data and system application information for the following

module mounting shelf used in a NetSure™ Power System.

Model Spec. No. Description

PSS4850-23GV

588705000

Module Mounting Shelf

For rectifier and converter modules, refer to their separate instruction document as indicated

in the following table.

Model Spec. No. Description Document Number

R48-3200 1R483200

Rectifier Module (PCU)

(3200 watts)

UM1R483500E R48-3200e 1R483200E

High Efficiency Rectifier

Module (PCU), (3200 watts)

R48-3500e 1R483500E

High Efficiency Rectifier

Module (PCU), (3500 watts)

C400/48-3500e 1C400483500E

High Efficiency Converter

Module (3500 Watts)

UM1C400483500E

Description: A module mounting shelf and rectifier/converter modules, when used in a NetSure Power

System equipped with a controller, comprise a -48V DC Power System designed to power a

load while charging a positive grounded battery. This system is capable of operating in a

battery-less installation or off battery for maintenance purposes. The system is designed for

operation with the positive output grounded.

The NetSure Power System utilizing this equipment is an integrated power system containing

rectifiers/converters, intelligent control, metering, and monitoring. A NetSure Power System,

utilizing this equipment, typically consists of...

• Module Mounting Shelf

The system contains one or more

module mounting shelves, which houses

rectifier/converter modules. A shelf

option is available which also houses the

ACU+ Controller.

• Rectifier/Converter Modules

The system contains rectifier or converter

modules, which provide load power,

battery float current, and battery

recharge current during normal operating

conditions. Refer to the Rectifier

Instructions (UM1R483500E) or

Converter Instructions

(UM1C400483500E) for more information.

• Controller

The controller controls the operation of the rectifier and converter modules. The

controller also provides power system control, metering, monitoring, and alarm functions.

Note: This document does not describe the controller. Refer to the Power System SAG

(System Application Guide) or separate Controller User Manual for controller information.
