NetSure
™
-48V DC Bulk Output Power System
Installation and User Instructions, UM582127100 (Issue AA, May 7, 2013)
Spec. No: 582127100 UM582127100
Model No: 722NBBB Issue AA, May 7, 2013
16
Connections to 588705000 List 53 and 63 (Single-Phase, Line Cords)
Spec. No. 588705000 List 53 and 63 rectifier module mounting shelf is provided with five (5) or six (6) factory installed AC input line cords
(one for each rectifier module position). Plug each AC line cord into a properly wired AC outlet or distribution box. Refer to Figure 10.

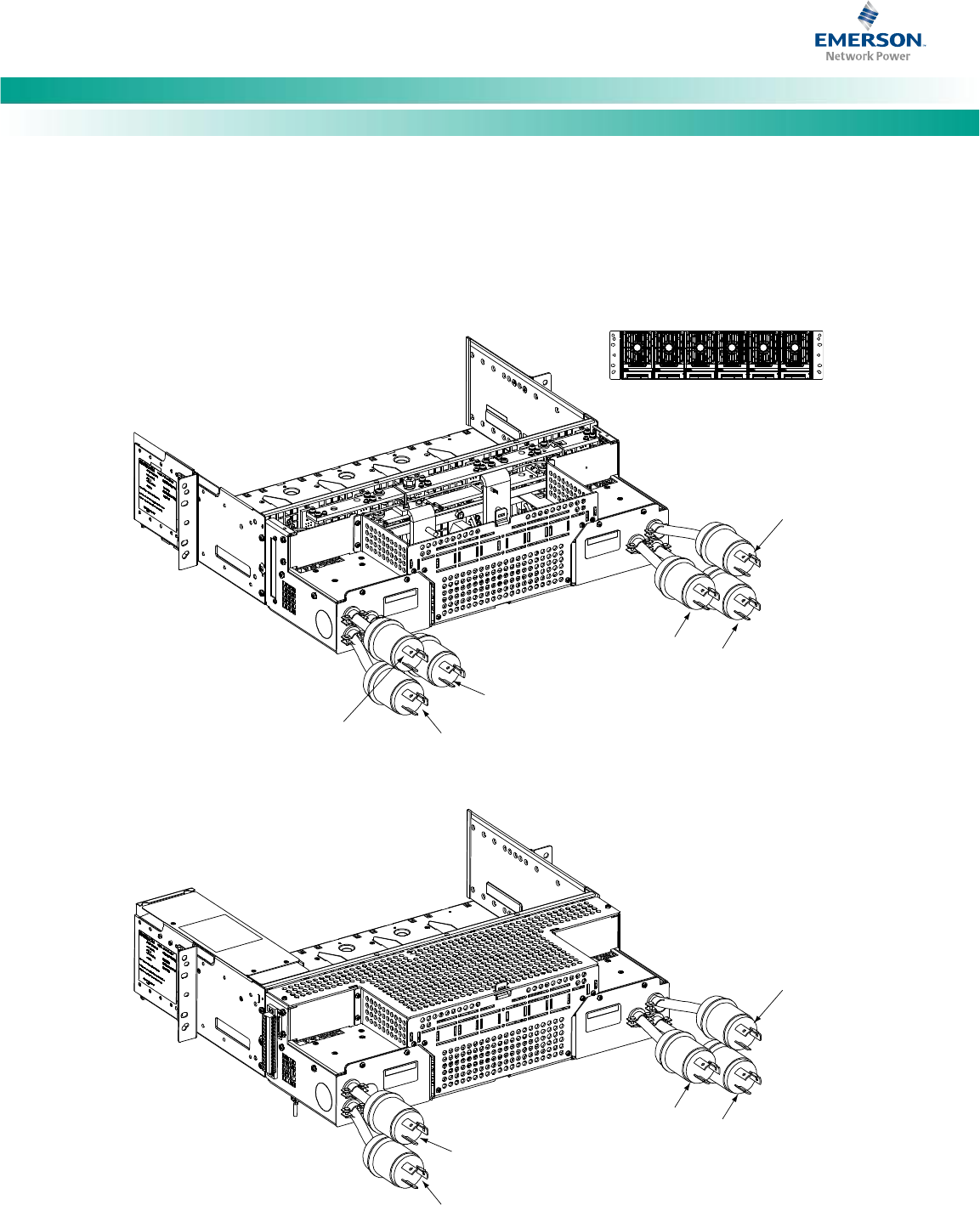

Figure 10. AC Input Connections to a 588705000 List 53 and 63 Rectifier Module Mounting Shelf (Single-Phase, Line Cords)
List 53
List 63
Rear View
Rear View
Rectifier
Module 1
Rectifier
Module 3
Rectifier
Module 2
Rectifier
Module 6
Rectifier
Module 5
Rectifier
Module 4
Rectifier
Module 5
Rectifier
Module 4
Rectifier
Module 1
Rectifier
Module 3
Rectifier
Module 2
Rectifier Module
Mounting Slots
(front view)
Rect.
1
Rect.
2
Rect.
3
Rect.
4
Rect.
5
Rect.
6
AC IN: 208-240VAC, 50/60Hz, SINGLE PHASE
AC IN: 208-240VAC, 50/60Hz, SINGLE PHASE
