NetSure
™
-48V DC Bulk Output Power System
Installation and User Instructions, UM582127100 (Issue AA, May 7, 2013)
Spec. No: 582127100 UM582127100
Model No: 722NBBB Issue AA, May 7, 2013
15

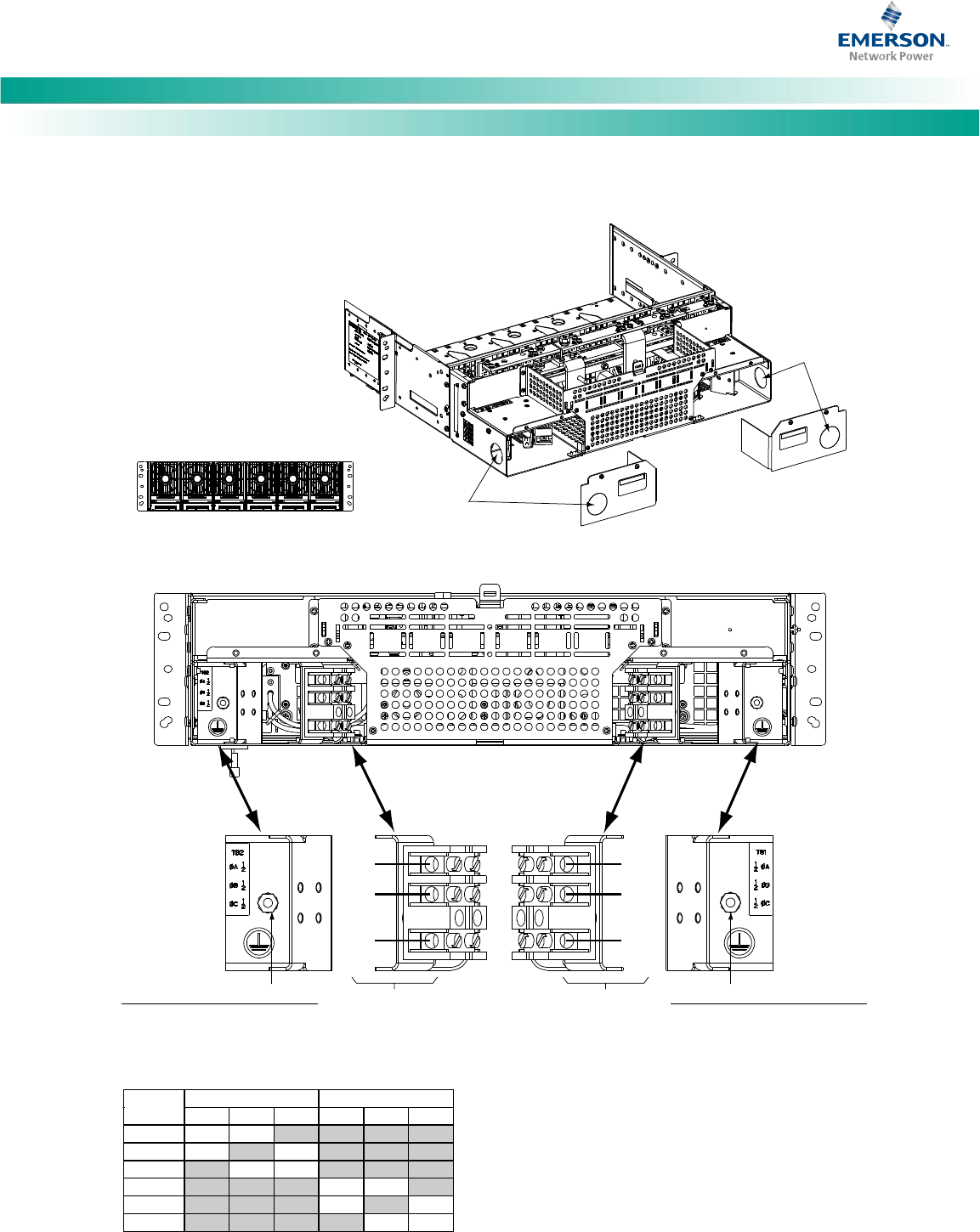

Figure 9. AC Input Connections to a 588705000 List 52 and 62 Rectifier Module Mounting Shelf (Three-Phase, Terminal Blocks)
Hole for 1"
Conduit Fitting
(AC Input)
Hole for 1"
Conduit Fitting
(AC Input)
Rear View
(List 52 shown)
Rear View
(List 52 shown)
Rectifier Module
Mounting Slots
(front view)
Rect.
1
Rect.
2
Rect.
3
Rect.
4
Rect.
5
Rect.
6
CONNECTIONS WITHIN THE SHELF
TB1, Terminal TB2, Terminal
Mounting
Position
1 (ØA) 2 (ØB) 3 (ØC) 1 (ØA) 2 (ØB) 3 (ØC)
L1 L2
L1 L2
L1 L2
L1 L2
L1 L2
Rect 6
Rect 5
Rect 4
Rect 3
Rect 2
Rect 1
L1 L2
List 52 only
(ØA)
TB2 TB1
(ØB)
(ØC)
(ØA)
(ØB)
(ØC)
AC IN Feed 2
Rectifier Modules
#4-#6 (List 52)
#4-#5 (List 62)
AC IN Feed 1
Rectifier Modules
#1-#3 (List 52, 62)
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE, PER SIDE.
Recommended torque: 23 in-lbs.
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE, PER SIDE.
Recommended torque: 23 in-lbs.
AC IN: 208-240VAC, 50/60Hz, THREE PHASE
Wire Size Capacity: 6-14 AWG.
Recommended Torque: 6 AWG, 45 in-lbs.
8-14 AWG, 35 in-lbs.
