NetSure
™
-48V DC Bulk Output Power System
Installation and User Instructions, UM582127100 (Issue AA, May 7, 2013)
Spec. No: 582127100 UM582127100
Model No: 722NBBB Issue AA, May 7, 2013
13

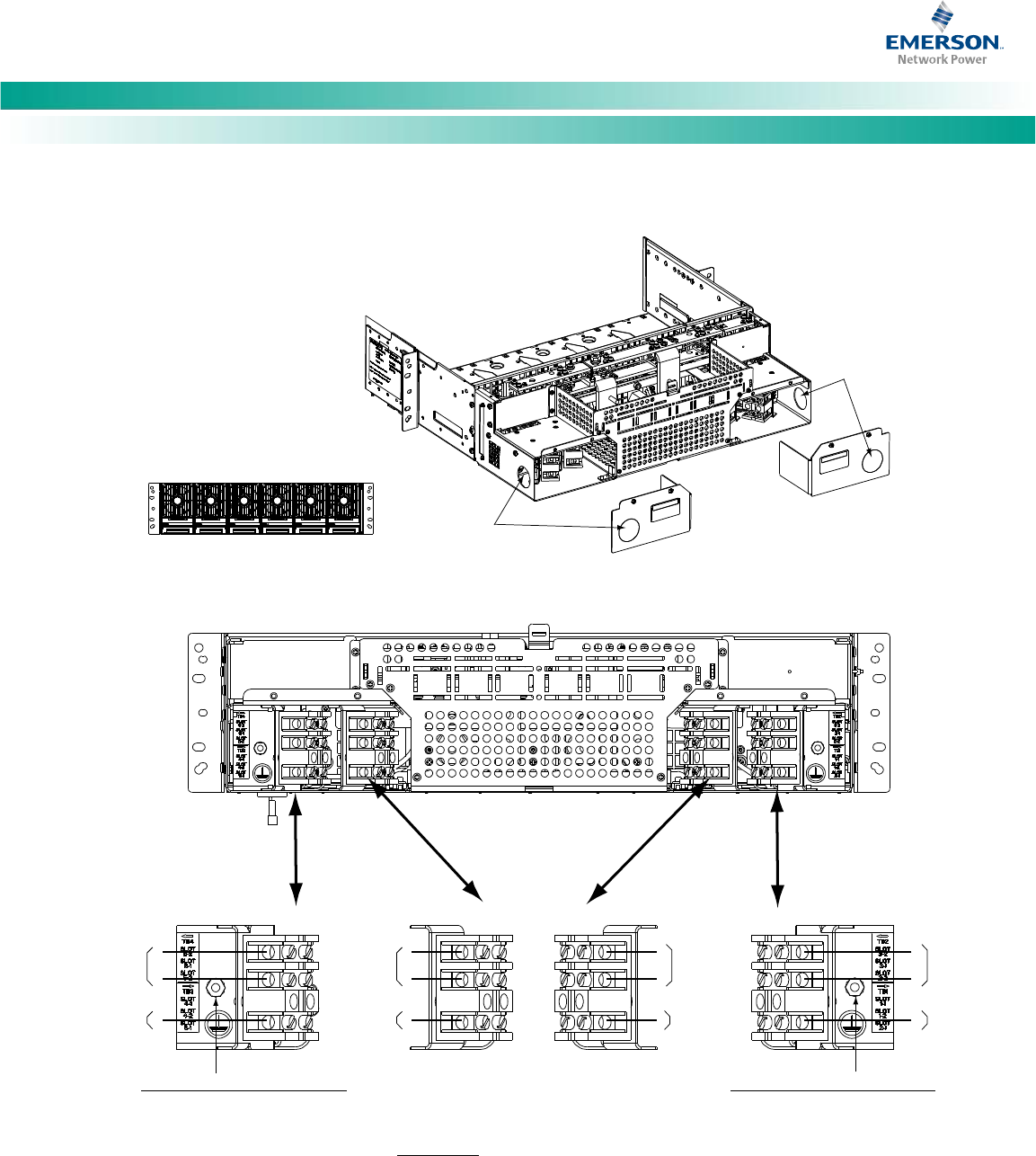

Figure 8. AC Input Connections to a 588705000 List 51 and 61 Rectifier Module Mounting Shelf (Single-Phase, Terminal Blocks)
List 51 only
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE, PER SIDE.
Recommended torque: 23 in-lbs.
FRAME GROUND CONNECTION
ONE 10-32 X 3/4" STUD
AND HARDWARE, PER SIDE.
Recommended torque: 23 in-lbs.
AC IN: 208-240VAC, 50/60Hz, SINGLE PHASE
Wire Size Capacity: 6-14 AWG.
Recommended Torque: 6 AWG, 45 in-lbs.
8-14 AWG, 35 in-lbs.
Service Type:
a. Line to Line:
Connect Line 1 to Terminal 1.
Connect Line 2 to Terminal 2.
b. Line to Neutral:
Connect Line to Terminal 1.
Connect Neutral to Terminal 2.
TB2 TB1TB4 TB3
1
2
1
2
1
2
2
1
2
1
2
1
Rectifier
Module 1
Rectifier
Module 2
Rectifier
Module 3
Rectifier
Module 4
Rectifier
Module 6
Rectifier
Module 5
Rectifier
Module 5
Rectifier
Module 2
Rear View
(List 51 shown)
Hole for 1"
Conduit Fitting
(AC Input)
Hole for 1"
Conduit Fitting
(AC Input)
Rear View
(List 51 shown)
Rectifier Module
Mounting Slots
(front view)
Rect.
1
Rect.
2
Rect.
3
Rect.
4
Rect.
5
Rect.
6
