NetSure
™
-48V DC Bulk Output Power System
Installation and User Instructions, UM582127100 (Issue AA, May 7, 2013)
Spec. No: 582127100 UM582127100
Model No: 722NBBB Issue AA, May 7, 2013
10
Setting Switch Options
Switch Settings on IB2 Interface Board
Dip Switch SW1 on the IB2 board is used to set the communications address for this board.
Refer to Table 1 for SW1 settings. Refer to Figure 6 for SW1 location.
Perform the following procedure to verify the factory settings.
This procedure can also be used to make adjustments on a replacement circuit card.
PROCEDURE
1. Ensure SW1 is set per Table 1. Refer to Figure 6 for location.
Table 1. IB2 Interface Board Switch Settings
Setting
DIP Switch SW1
1
2
IB2
OFF
OFF

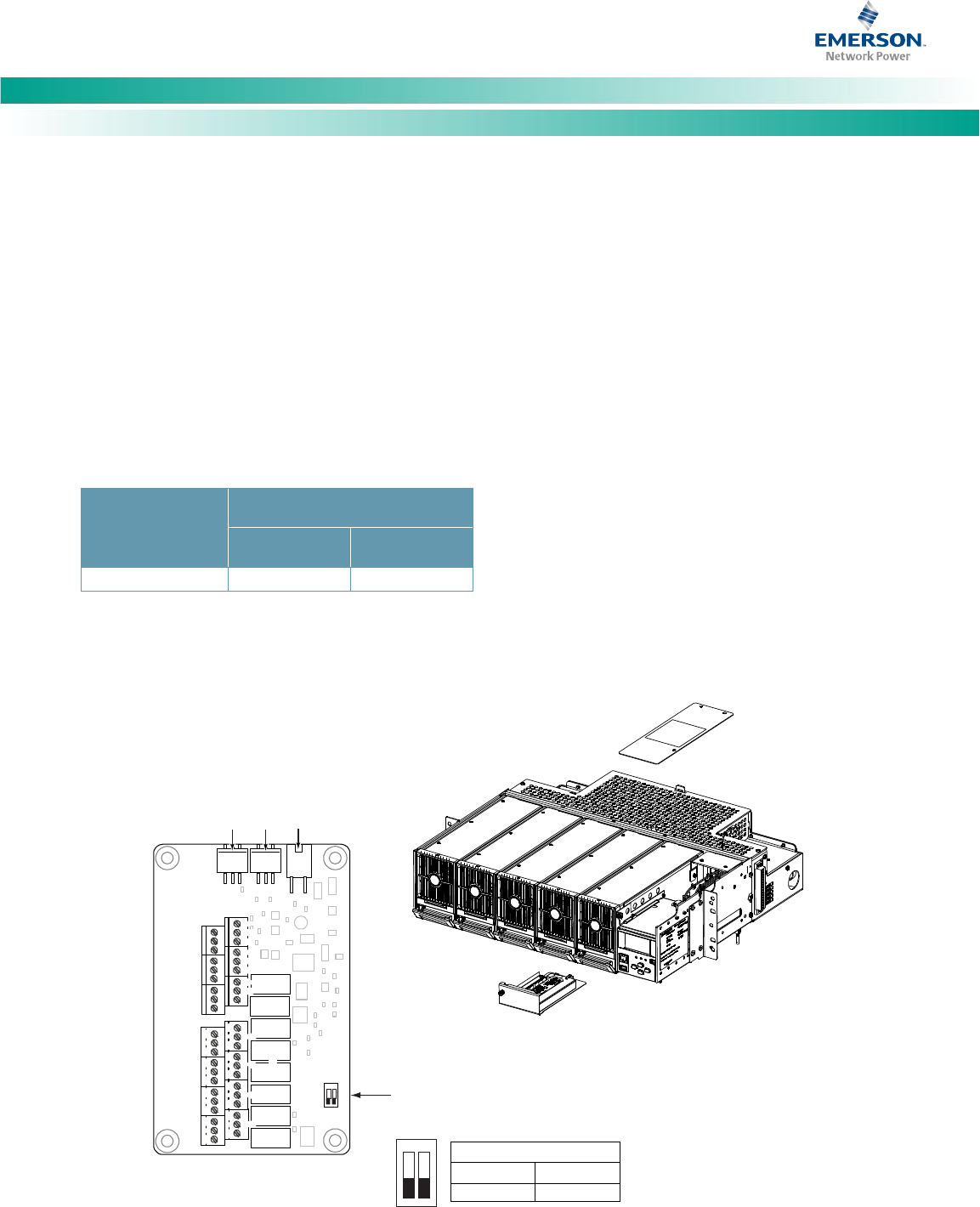

Figure 6. IB2 Interface Board Switch Location and Settings
-
J12
*
RELAY
SW1
7
J2
J11
5 3
1
Relay Output Terminal Blocks
Digital Input Terminal Blocks
J9 J8 J7
J6
J5 J4
J3
8 6 4 2
8 7 6 5 4 3
2 1
+
IB2 Board (Top View)
NO
C
NC
NO C NC
NO
C
NC
NO C NC
NO
C
NC
NO C NC
NO
C
NC
NO C NC
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
5 3 1
46 2
5
3
1
46 2
Connector
to ACU+
IB2 TEMP
PROBE 1
IB2 TEMP
PROBE 2
Main Rectifier
Module Mounting Shelf
Top cover can be removed from
ACU+ section to facilitate circuit
card access.
IB2 Board Sliding Tray
on
off
1 2
SW1
In this system, switch settings
must be in positions shown.
ON
OFF
1 2
SW1
DIP Switch SW1
1 2
OFF OFF
