NetSure
™
-48V DC Bulk Output Power System
Installation and User Instructions, UM582127100 (Issue AA, May 7, 2013)
Spec. No: 582127100 UM582127100
Model No: 722NBBB Issue AA, May 7, 2013
9

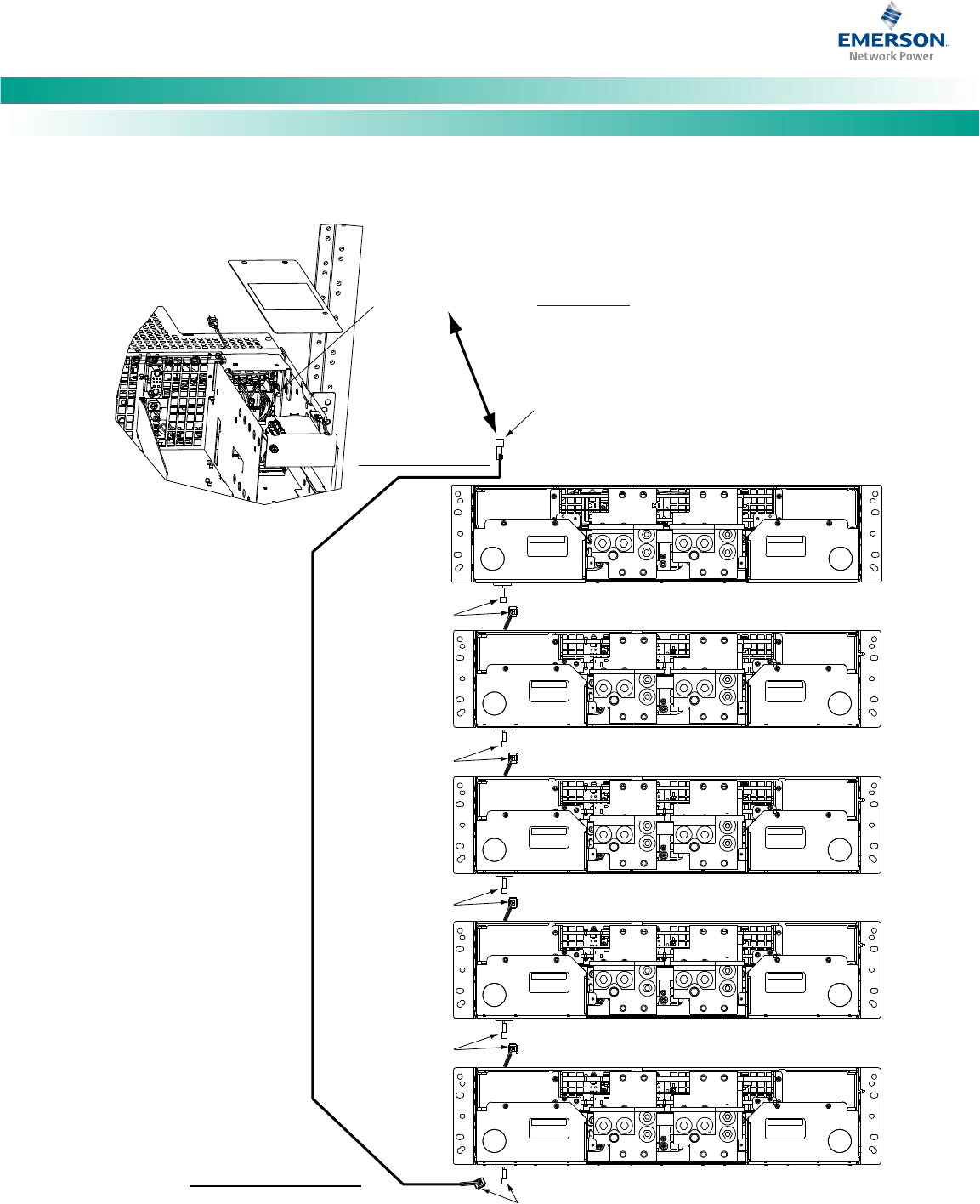

Figure 5. Control Bus Connections between Controller and Rectifier Module Mounting Shelves Spec. No. 588705000
Exploded View Shown to Illustrate Wire Connections Only
Route CAN Bus Jumper
P/N 556430 into this area.
Secure with cable ties.
Connect termination plug
P/N 556273 to open end.
P/N 556430 CAN Bus Jumper
Coil as required in bottom shelf and
route within shelves interiors to controller
area on main shelf.
Alarm & Control
Connections Between
Shelves and Controller
These two connectors
are plugged together.
Rear View (Main Shelf)
(List 61 shown)
Rear View (expansion shelf)
(List 51 shown)
Rear View (expansion shelf)
(List 51 shown)
Rear View (expansion shelf)
(List 51 shown)
Rear View (expansion shelf)
(List 51 shown)
These two connectors
are plugged together.
These two connectors
are plugged together.
These two connectors
are plugged together.
These two connectors
are plugged together.
ACU+ CAN Port
A CAN termination plug
(P/N 556273) must be
installed here if an external
device or system is not
connected to this connector.
Use cable P/N 556238 to connect
to an external device or system.
