NetSure
™
-48V DC Bulk Output Power System
Installation and User Instructions, UM582127100 (Issue AA, May 7, 2013)
Spec. No: 582127100 UM582127100
Model No: 722NBBB Issue AA, May 7, 2013
7

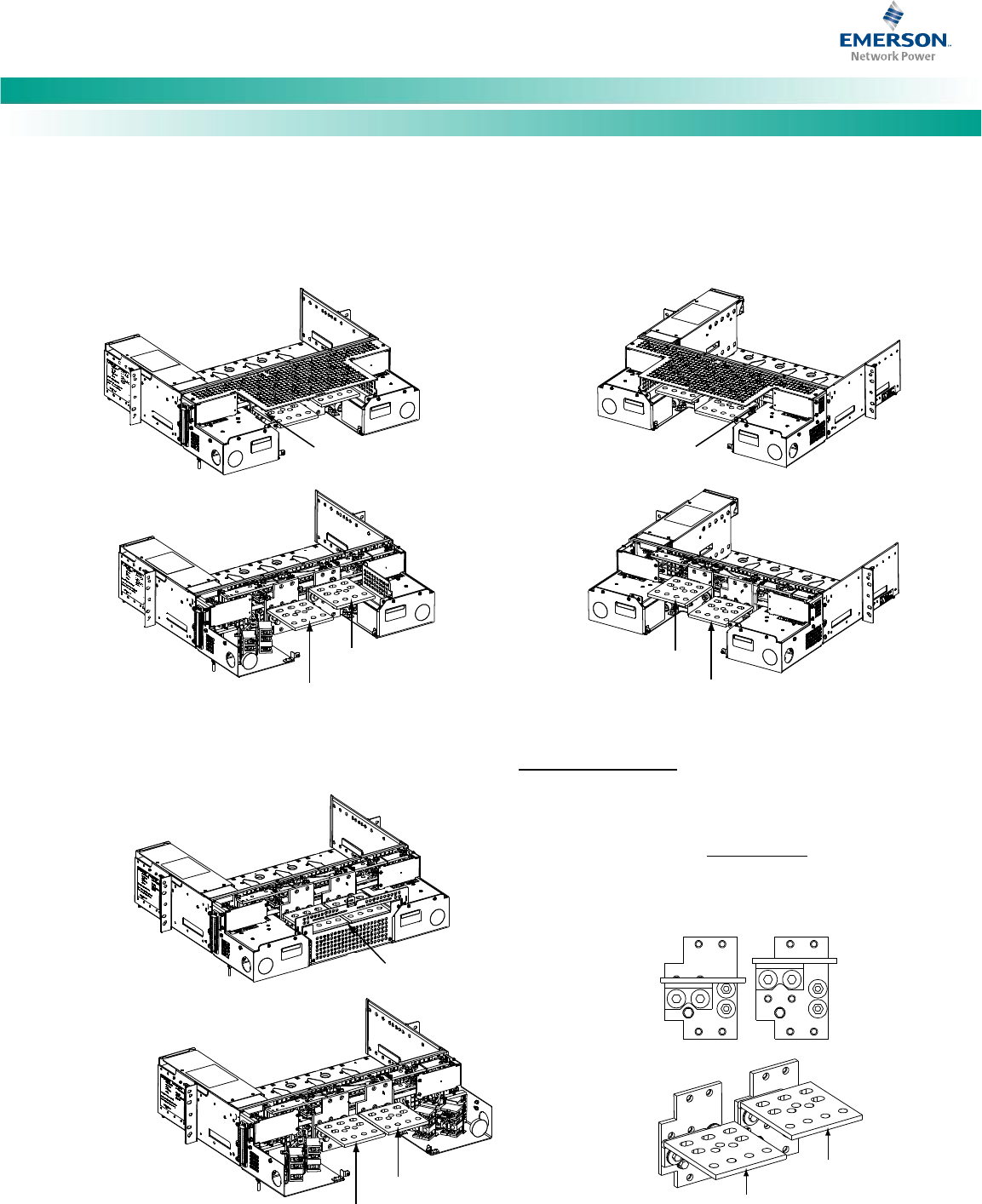

Figure 4. Changing the Direction of the DC Output Cables
Rear
Rear
Rear
Rear
Rear
Busbar Hardware Build-Up
1/4-20 x 7/8” Bolt
1/4” Belleville Lock Washer
1/4” Flat Washer
Busbar
(Torque to 60 in-lbs.)
DC Output Cables
Entering from the Right
(as viewed from the front)
DC Output Cables
Entering from the Left
(as viewed from the front)
DC Output Cables
Entering from the Rear
Reference Views
Left side busbar shown
mounted in lower mounting holes.
Right side busbar shown
mounted in upper mounting holes.
Left Side
Busbar
Right Side
Busbar
Right side shield removed.
Rear-bottom shield not shown.
Right side busbar mounted
in lower mounting holes.
Left side busbar mounted
in upper mounting holes.
Left side shield removed.
Rear-bottom shield not shown.
References to left and right
are as viewed from the front.
Right side busbar mounted
in lower mounting holes.
Left side busbar mounted
in lower mounting holes.
Right side busbar mounted
in upper mounting holes.
Left side busbar mounted
in lower mounting holes.
Section of rear-bottom
shield removed.
