16 Sensor Installation: F-Series
Mounting the Sensor

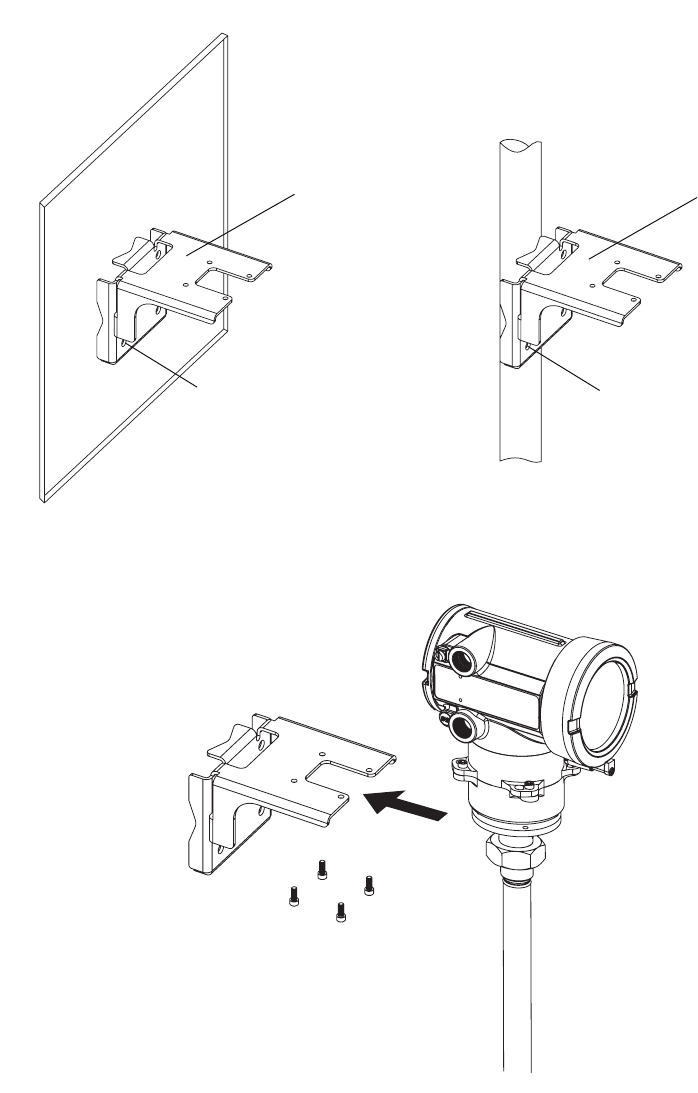

Figure 11 Mounting the Model F300A electronics
Mounting
bracket
(wall mount)
Use 4 × 5/16″ (8 mm)
bolts to secure the
bracket to a wall
Slide the electronics into the
bracket groove.
Mounting
bracket
(instrument pole)
Use 2 × 5/16″ (8 mm)
U-bolts to secure the
bracket to an
instrument pole
Secure the electronics to the
bracket with the 4 #10 screws.
