6. Tighten the fasteners and remove the alignment template.

Note

Use a flat end hex key to tighten the mounting assembly fasteners to a torque of 2.37 N•m (21 in•lbf) for 4 mm screws, and

5.08 N•m (45 in•lbf) for 5 mm screws. While tightening the fasteners using the hex key should be sufficient, blue (medium) thread

locker may be used for additional security.

7. Mount the digital valve controller to the mounting bracket, using the mounting bolts. See figure 6.

8. Check for clearance between the magnet assembly and the DVC2000 feedback slot. The magnet assembly should

be positioned so that the index mark in the feedback slot of the DVC2000 housing is within the valid range on the

magnet assembly throughout the range of travel. See figure 2.

9. Install tubing between the actuator casing and the pneumatic positioner output connection that has the arrow

pointing away from the opening. See figure 7.

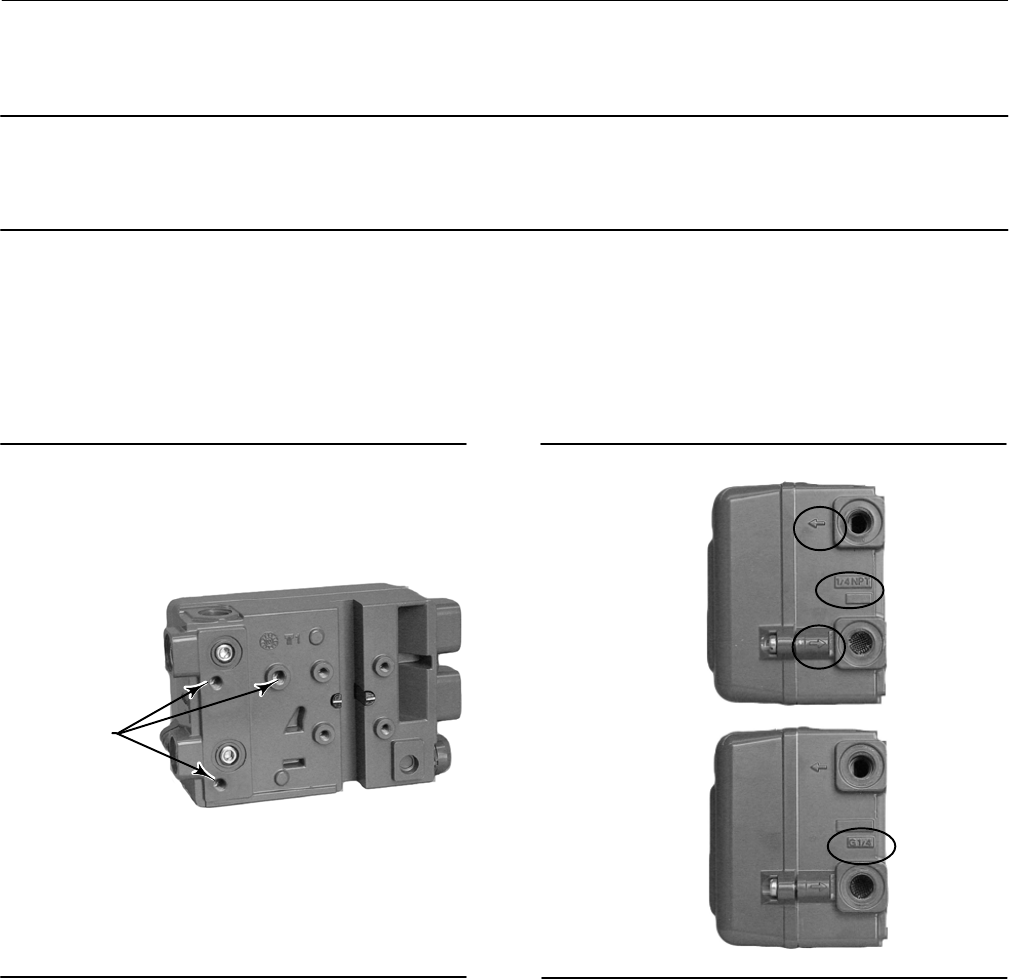

Figure 6. Mounting Holes for Linear Actuators

W9015

M8 THREADED

MOUNTING

HOLES

Figure 7. Conduit and Pneumatic Thread Variations

W9016

ARROW P0INTING

AWAY FROM PORT =

OUTPUT TO ACTUATOR

ARROW P0INTING

TOWARDS THE PORT =

AIR SUPPLY IN

1/4 NPT

PNEUMATIC

CONNECTIONS

G1/4

PNEUMATIC

CONNECTIONS
