Quick Start Guide
D103203X012
DVC2000 Digital Valve Controller
April 2014
36
ATEX
Special Conditions for Safe Use
Intrinsically Safe
The equipment is an intrinsically safe equipment. It can be mounted in hazardous area.
The terminal blocks can be only connected to certified intrinsically safe equipments and these combinations must be
compatible as regard intrinsic safety rules.
The equipment shall be connected in accordance with manufacturer's installation instructions in drawing GE14685
(figure 29).
The equipment must not be submitted to mechanical impacts or frictions.
Temperature Classification:
T4 at Ta ≤ 80_C
T5 at Ta ≤ 40_C
Refer to figure 28 for a typical DVC2000 ATEX approval nameplate.

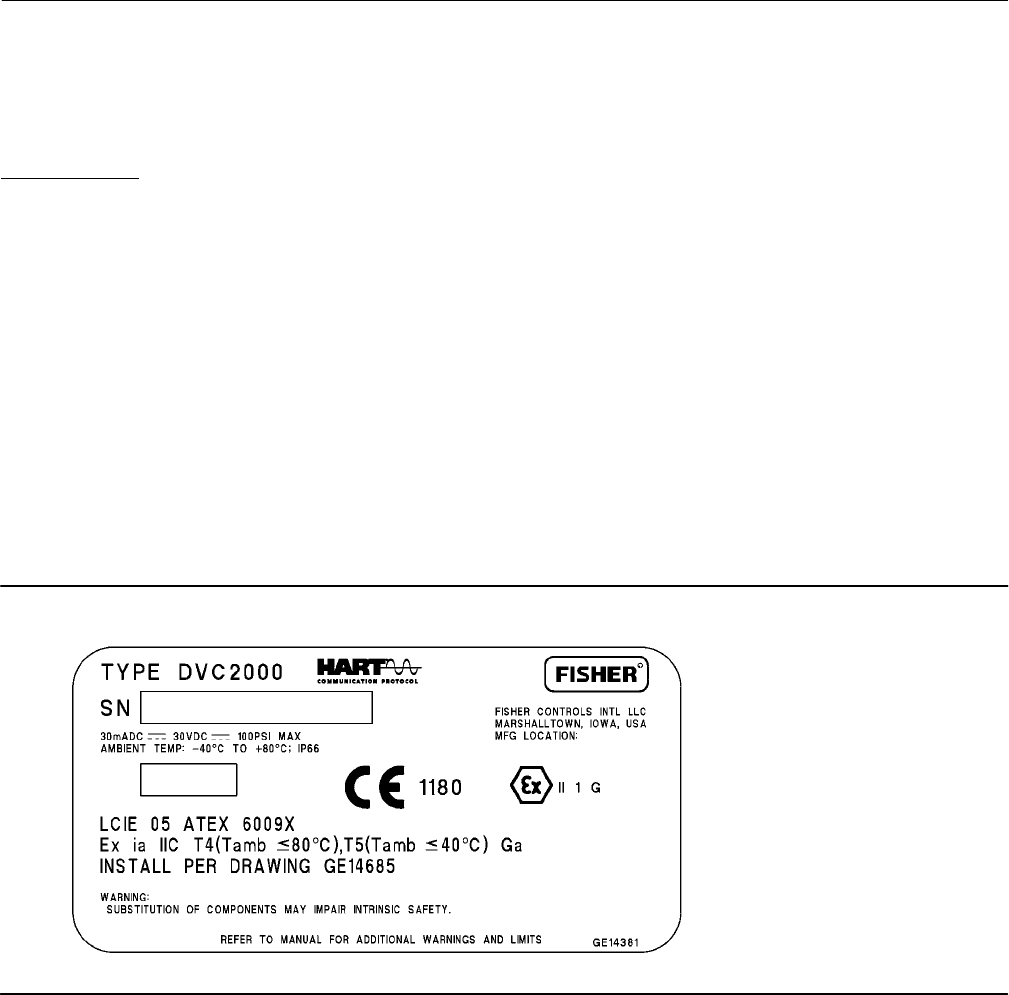

Figure 28. Typical ATEX Nameplate
