If the process and ambient temperatures exceed the limits indicated by zone 2, then the DVC2000 high temperature mounting kit
can not be used. If temperatures exceed zone 2, you must use an extension bonnet or bracket mounted instrument.
Identify the yoke side to mount the DVC2000 digital valve controller based on the actuator fail mode. Refer to the GX
Control Valve and Actuator System instruction manual (D103175X012).
1. Isolate the control valve from the process line pressure and release pressure from both sides of the valve body. Shut
off all pressure lines to the actuator, releasing all pressure from the actuator. Use lock‐out procedures to be sure
that the above measures stay in effect while you work on the equipment.
2. Loosely attach the feedback pieces and magnet assembly to the valve stem connector. Do not tighten the fasteners
because fine adjustment is required.
CAUTION
Do not install a magnet array that is shorter than the physical travel of the actuator. Loss of control will result from the
magnet array moving outside the range of the index mark in the feedback slot of the DVC2000 housing.
3. Using the alignment template (supplied with the mounting kit), position the feedback array inside the retaining
slot.
4. Align the magnet array as follows:
D For air‐to‐open GX actuators vertically align the magnet array so that the center line of the alignment template is
lined up as close as possible with the upper
extreme of the valid travel range on the feedback array. See figure 10.
D For air‐to‐close GX actuators vertically align the magnet array so that the center line of the alignment template is
lined up as close as possible with the lower extreme of the valid travel range on the feedback array. See figure 11.

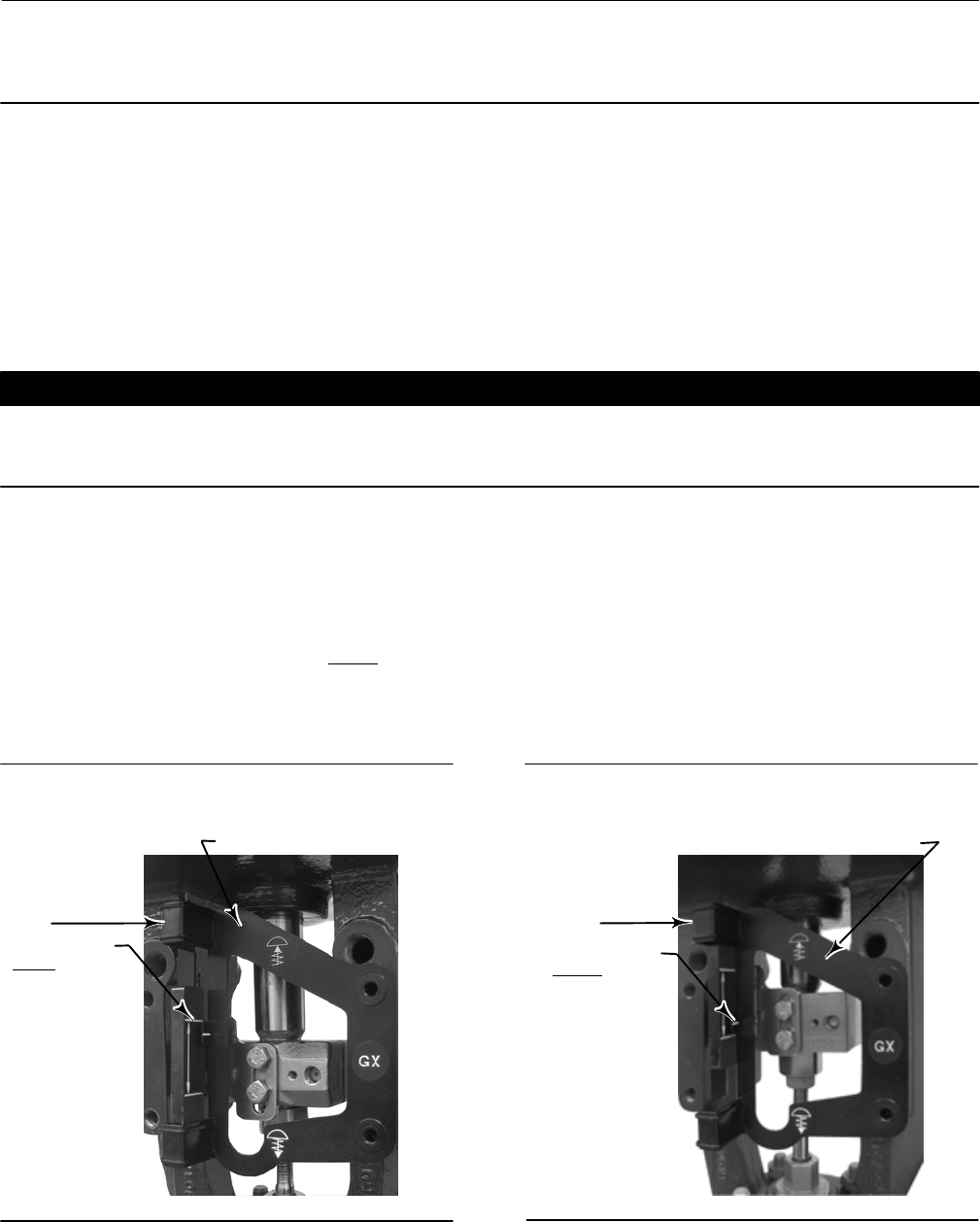

Figure 10. Air‐to‐Open Fisher GX Magnet Array
Alignment
W9218
ALIGNMENT TEMPLATE
LINE UP WITH
UPPER
EXTREME
OF VALID TRAVEL
RANGE
RETAINING
SLOT
Figure 11. Air‐to‐Close Fisher GX Magnet Array
Alignment
ALIGNMENT TEMPLATE
W9219
LINE UP WITH
LOWER
EXTREME
OF VALID TRAVEL
RANGE
RETAINING
SLOT
