Installation Manual

Installation, Operation and Maintenance Manual IO-70105 Rev 1, 1/2014

320 CIRCUIT BREAKER & WIRE SIZE

Overcurrent Protection:

........... 20A Required

Connection Wire

: ..................... Phase/Neutral/Ground; 18” of #12 AWG Included

Summary Alarm Contacts

........ 18” of #18 AWG Included; 125VAC, 5A max

Normally Open .......... (NO) = Yellow

Normally Closed ......... (NC) = Blue

Common ................... (COM) = Orange

(With AC Applied)

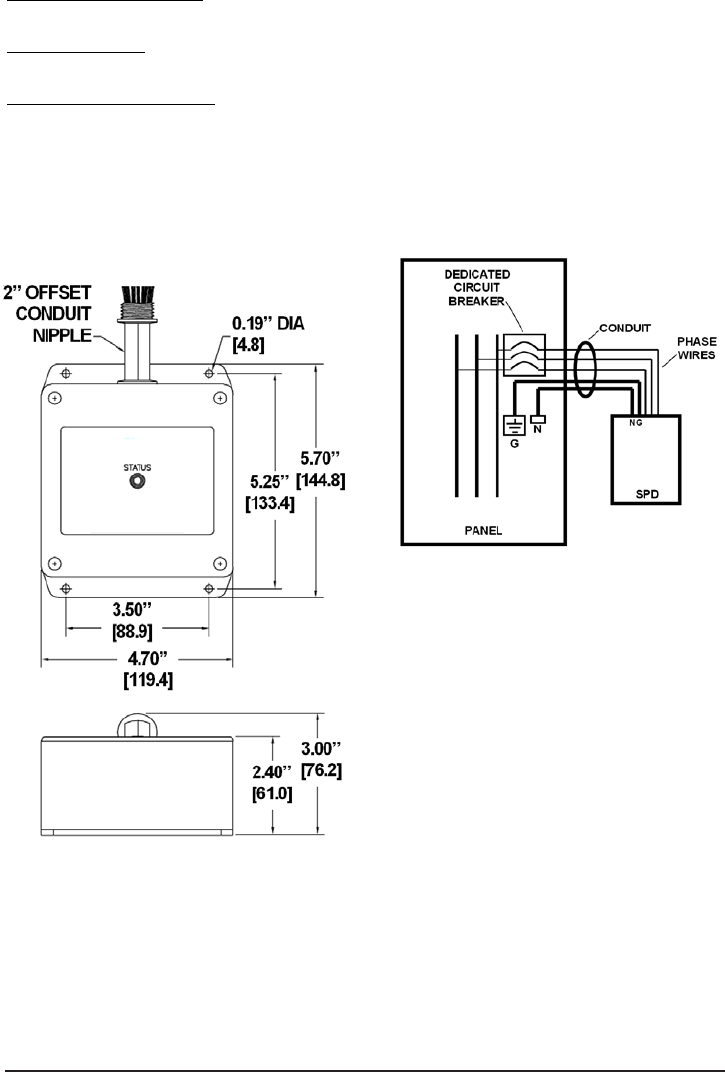

320 DIMENSIONAL INFORMATION PARALLEL WIRING DIAGRAM
