MODEL 396P
and 396PVP
SECTION 3.0
WIRING - MODEL 396P

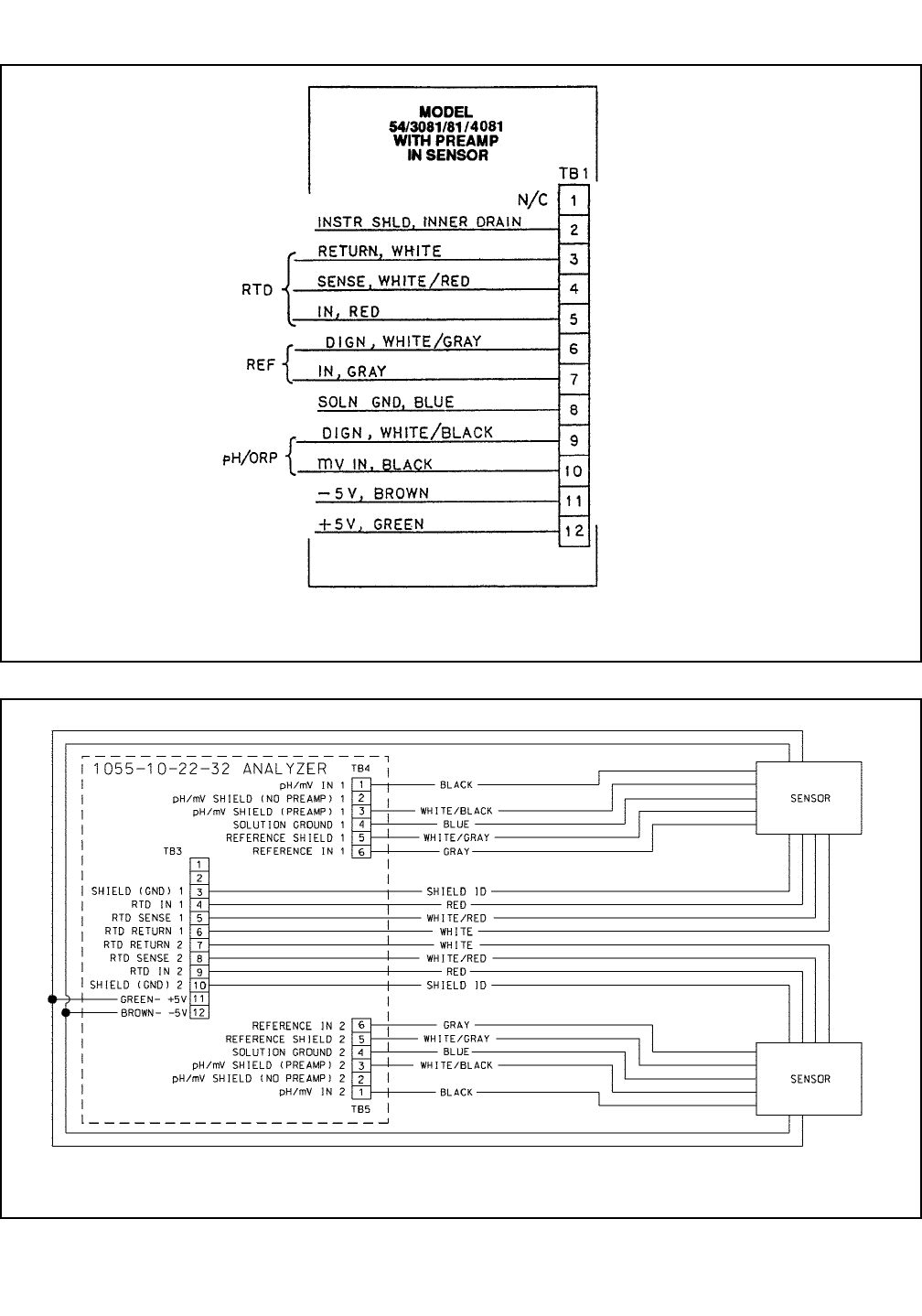

FIGURE 3-5. Wiring Det
ails Model 396P-01-55 for use with Models 54e, 81, 3081, 4081, and 5081
FIGURE 3-6. Wiring Model 396P-01-( )--55 Sensor to Model 1055-10-22-32
Analyzer
