User manual

Slave Components - B-Modules (Building)
Product Catalogue all information for reference only - technical changes reserved - rev. 9 Page 83 of 171
6.4.2.3 Terminal Assignment

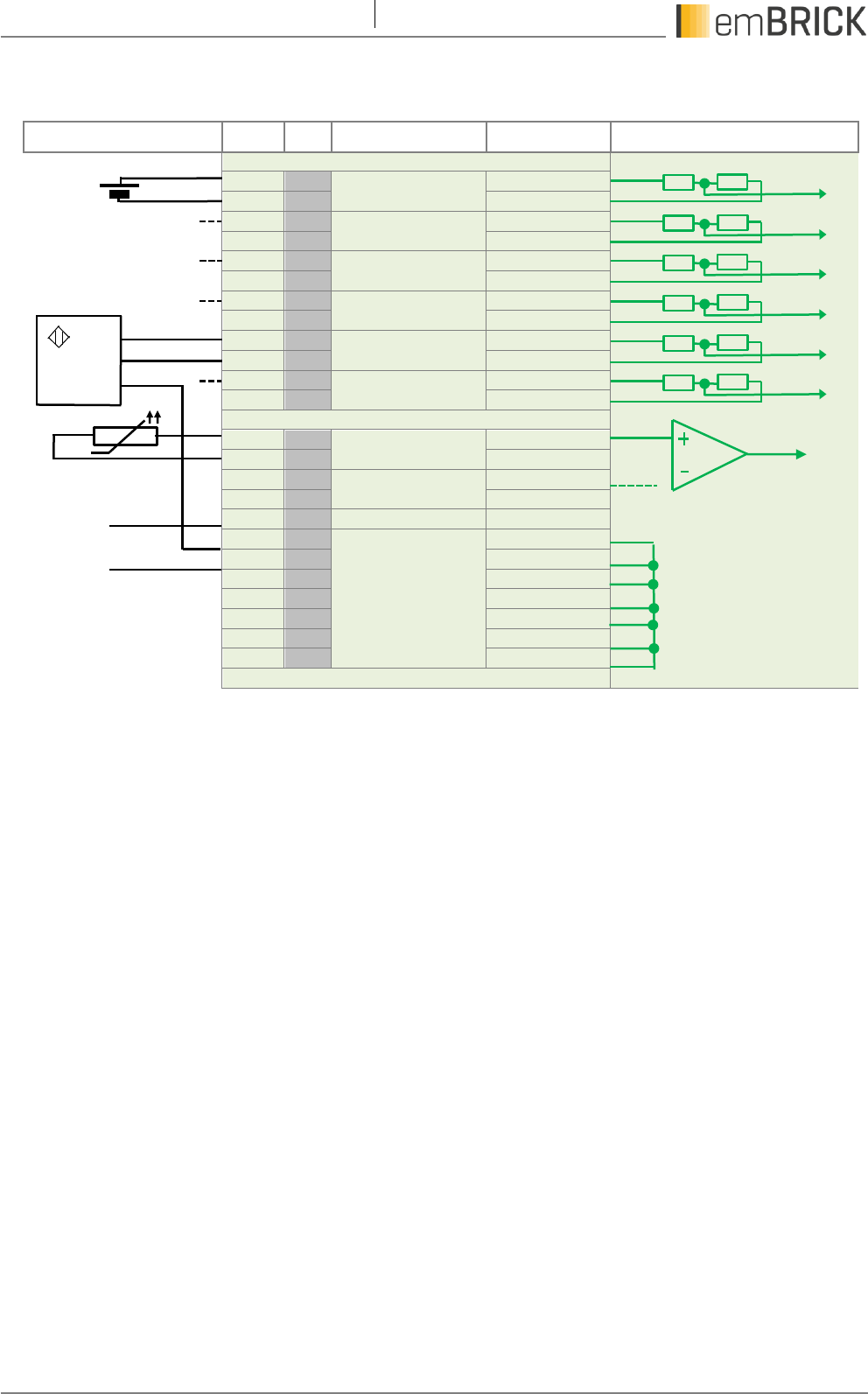

Circuit Example
Ident.
Ter.
Function
Usage
internal simplified diagram
I1
1
Analog - Input 1
Input
0V
2
GND
I2
3
Analog - Input 2
Input
0V
4
GND
I3
5
Analog - Input 3
Input
0V
6
GND
I4
7
Analog - Input 4
Input
0V
8
GND
I5
9
Analog - Input 5
Input
0V
10
GND
I6
11
Analog- Input 6
Input
0V
12
GND
T1
13
LDR - Input 1
Input
0V
14
GND
T2
15
LDR - Input 2
Input
0V
16
GND
0V
17
GND
18
No funktion
19
20
21
22
23
24
6.4.2.4 LED Indications
Status-LED .................................. module status (see 6.1.1)
6.4.2.5 Application Note
In addition to the notes in chapter 4, please regard the following:
 The shield of the sensor should be connected to PE.
 The terminals 18 ... 24 are only to duplicate the supply e.g. for sensors. Do not exceed
voltages over 35V and currents over 500mA.
 Make sure that the GND of the analog signals is connected to the 0V terminal. Otherwise
the measurement will be less precise.
GND
24V
Supply
