User manual

Passive Components - Adapters, Connectors

Product Catalogue all information for reference only - technical changes reserved - rev. 9 Page 150 of 172

7.4.1.1 CAE_X-ExpM10_01 / CAE_X-ExpF10_01

.. adapter to 10 pol boxed connector

Modul ID

Order No.

CAE_X-Exp#10_01

Terminal

Boxed connextor 10 pol

Size

M: 1 eU (11mm x 72mm)

F: 2 eU (22mm x 72mm)

Variants

M: male conector to brickBUS

F: female conector to brickBUS

7.4.1.1.1 Brief Description

With this adapter you can connect the bus to another row of emBRICK®-modules over a 10pol

wire. The male will be used on the right side of the modules and the female on the left side.

The modules can be initialized from left and right. The connector to wire is lockable. To use

this you also need one of these wires 7.4.1.5 CAE_X-10Wire

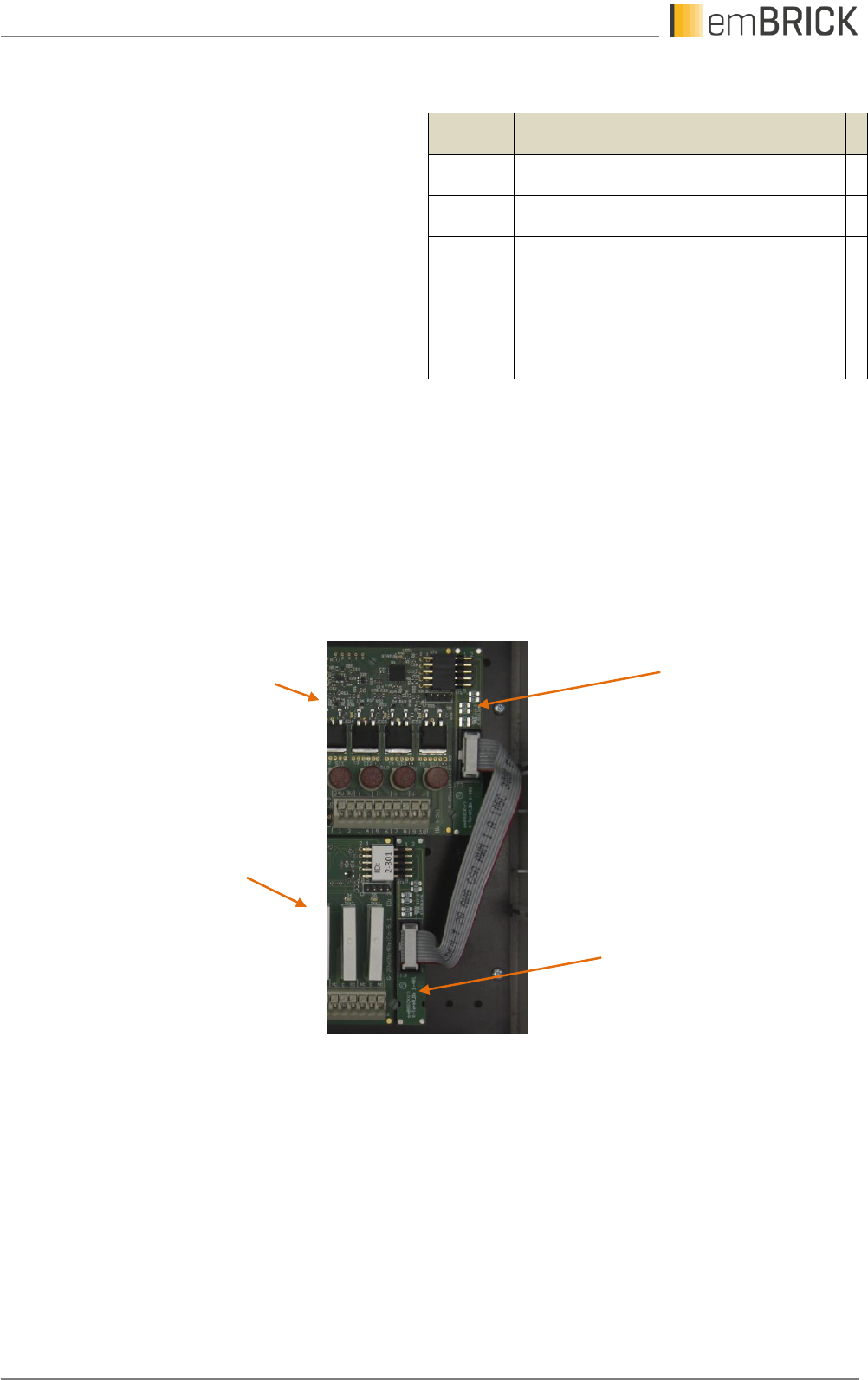

Functional mounting:

Image similar

CAE_X-ExpM10

second emBRICK row

first emBRICK row
