User guide

Connect one end of the video cable to the rear side of computer and the other to the
LCD. Tighten by turning the two thumb screws clockwise to ensure proper grounding.
You can select DVI video cable or D-SUB15 video cable.
2-16 Elo Touchmonitor User Guide

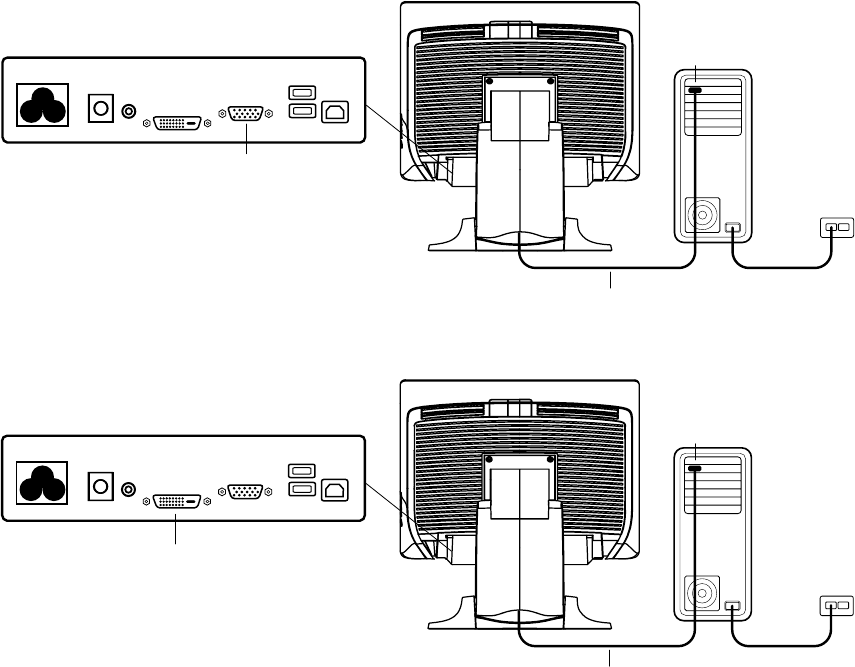

CONNECTIONS ON UNDERSIDE
VIDEO CABLE
VIDEO PORT
FEMALE 15-PIN
VIDEO CONNECTOR
CONNECTIONS ON UNDERSIDE
DVI CABLE
DVI PORT
DVI 24-PIN
CONNECTOR
