Harmonica Installation Guide Technical Specifications
MAN-HARIG (Ver. 1.902)
www.elmomc.com
54

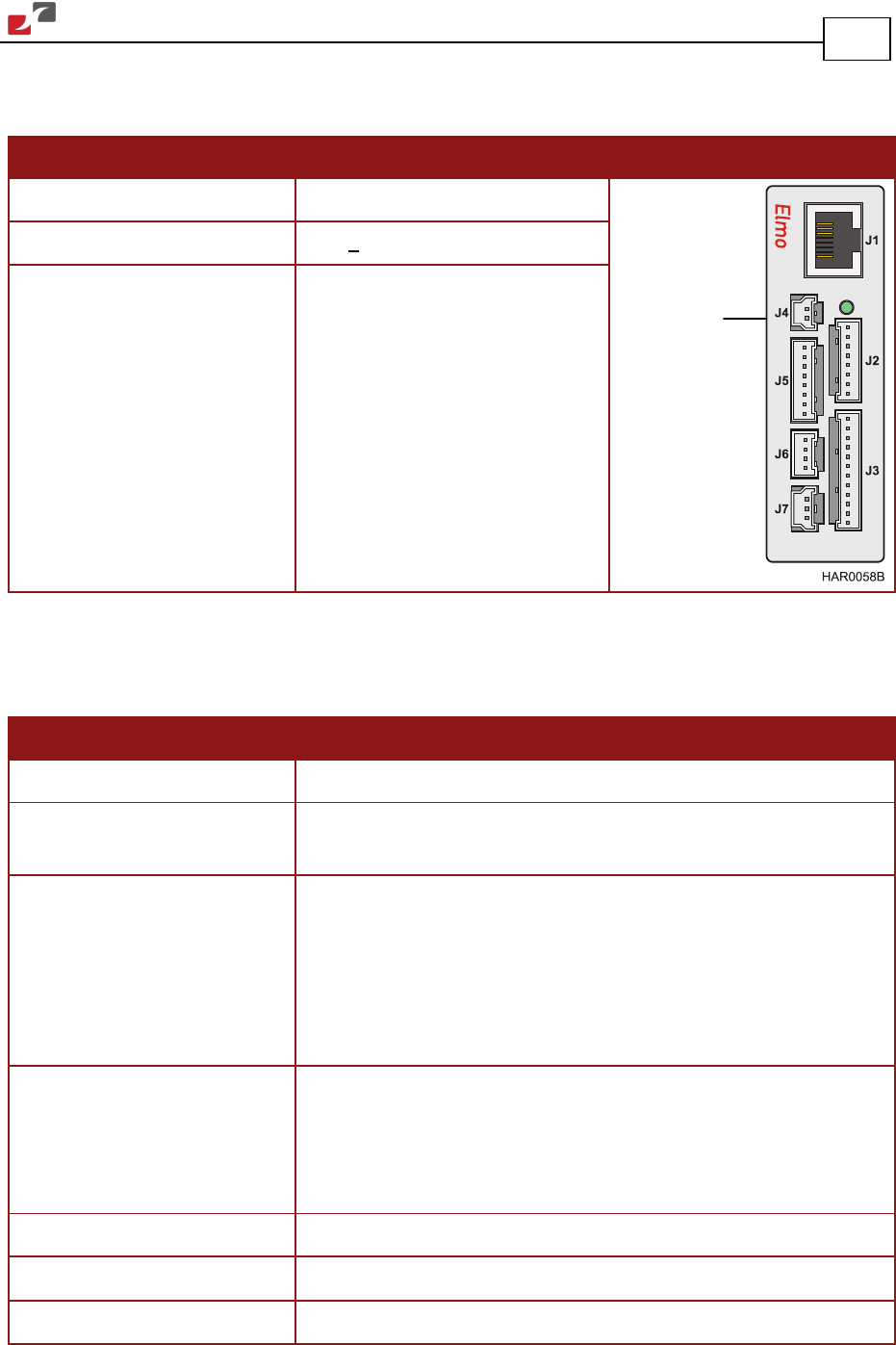

4.6. Auxiliary Power Supply (J4)
Feature Details Connector Location
Auxiliary power supply DC source only
Auxiliary supply input voltage 24 V +20%
Auxiliary supply input power 8 VA (maximum)
4.7. Control Specifications
4.7.1. Current Loop
Feature Details
Controller type Vector, digital
Compensation for bus voltage
variations
On-the-fly automatic gain scheduling
Motor types
• AC brushless (sinusoidal)
• DC brushless (trapezoidal)
• DC brush
• Linear Motors
• Moving coils
Current control
• Fully digital
• Sinusoidal with vector control
• Programmable PI control filter based on a pair of PI controls of
AC current signals and constant power at high speed
Current loop bandwidth <2.5 kHz
Current sampling time
Programmable 70 to 100 µsec
Current sampling rate Up to 16 kHz; default 11 kHz
Auxiliary
Power
supply
